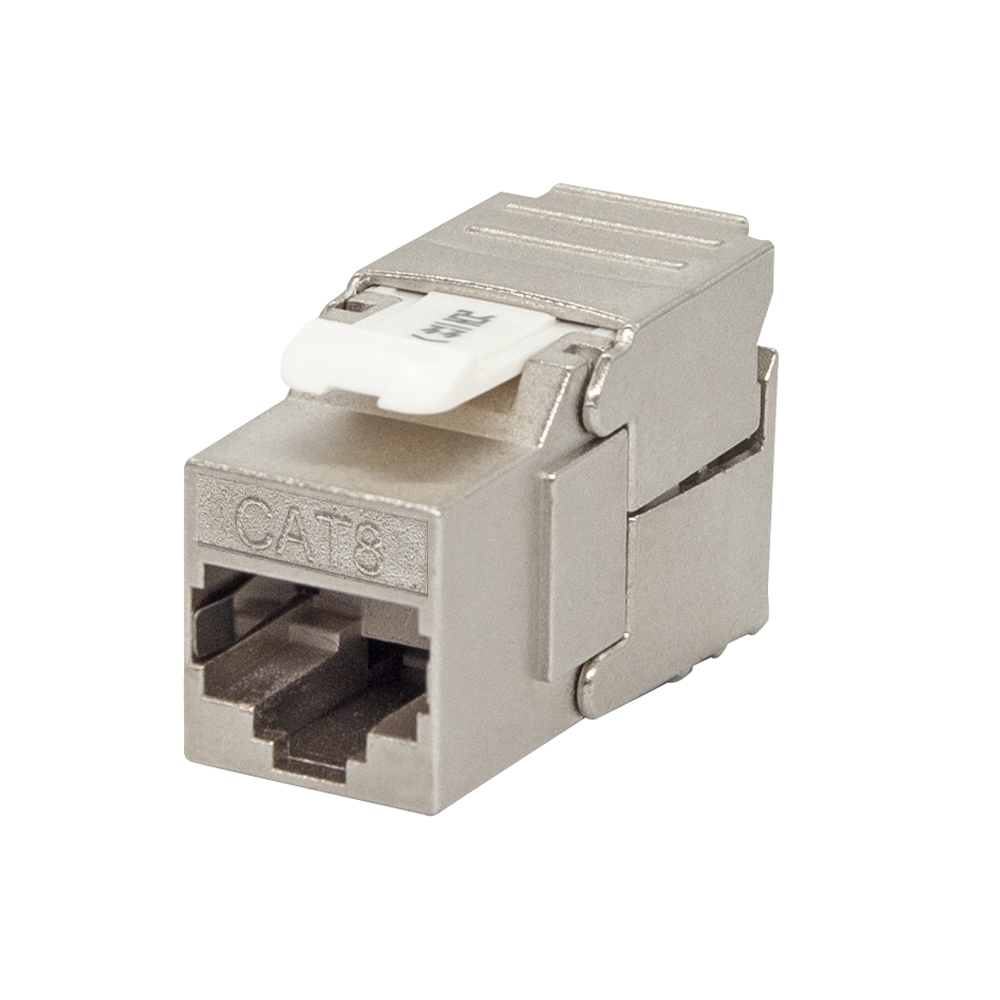

CAT8 Keystone Jack
PCB adopts optimized compensation design scheme, higher margin index, tool-free termination, convenient and fast Housing 360° fully shielded to ensure the shielding performance of the product Adopt e
Product Features
Product Specifications
Download
Guideline
YD/T 926.3, IEC 60603-7, ANSI/TIA-568.2-D, ISO/IEC 11801-1

Material
PIN needle: phosphor bronze, 50 μ’’ gold-plated
IDC reed: phosphor bronze, 200 μ‘’ tin plated
Plastic parts: ABS+PC, in line with UL 94V-0

Physical parameter
Mating life: ≥ 1000 times
Wiring life: ≥ 250 times
Working temperature: -10 ℃～60 ℃
Storage temperature: -40 ℃～60 ℃
Relative humidity: 10% ～ 90%

Electrical parameters
Insulation resistance: ≥ 500 MΩ
Withstand voltage: 1000 V
DC current: 1.5 Amps
DC resistance: ≤ 100 mΩ
Contact resistance: ≤ 20 mΩ
Number of pins: 8

Connection method: T568A/T568B

Terminal type: 90°/180° no punching type

Wire diameter range: 23AWG 24AWG 26AWG

Shell material: zinc alloy

Mating times: Passed 750 times of mating test

Working mode: panel installation blank patch panel

Working temperature: -10°C-60°C (-14°F-140°F)
