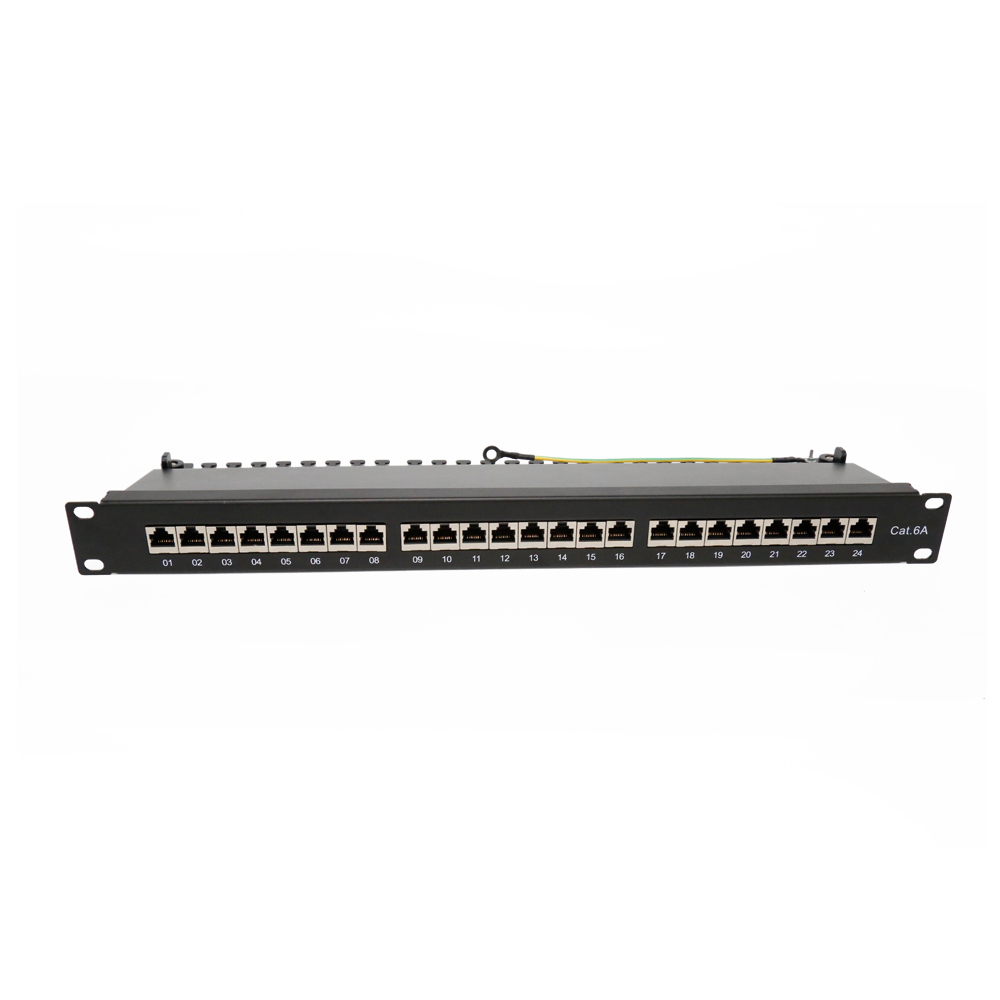

CAT6A Shielded Patch Panel
High-quality cold-rolled steel plate, electrostatic spraying PCB optimized compensation scheme, higher margin index RJ45 slot 360° shielding 0.5U, 24 ports, higher density Conforms to UL and REACH re
Product Features
Product Specifications
Download
Guideline
YD/T 926.3, IEC 60603-7, ANSI/TIA-568.2-D, ISO/IEC 11801-1

Material
Metal part: high-quality cold-rolled sheet
Front PIN needle part: phosphor bronze, 50 μ" gold-plated
IDC card connection part on the rear side: phosphor bronze, 200 μ" tin plated
Plastic part: PBT+PC, in line with UL 94V-0

Physical parameter
Mating life: ≥ 1000 times
Termination times: ≥ 250 times
Wiring diameter: 22 ～ 26AWG conductor
Working temperature: -10 ℃～60 ℃
Storage temperature: -40 ℃～60 ℃
Relative humidity: 10% ～ 90%

Electrical parameters
Insulation resistance: ≥ 500 MΩ
Withstand voltage: 1000 V
DC current: 1.5 Amps
DC resistance: ≤ 100 mΩ
Contact resistance: ≤ 20 mΩ

Rated current: 1.5A

Contact resistance: Max 100mQ (500VDC)

Insulation resistance: Min 1000MQ

Compressive strength: 750VAC (60Hz/min)

Storage temperature: -40C TO +70"C

Operating temperature: -20C TO +60C

IDC shell material: PBT

Panel frame material: SSPTC. Black or industrial gray, electrostatic powder coating

Mating life: 2750 times

IDC life: 2200 times

Contact material: phosphor bronze, thickness 0.3mm

IDC contact material: phosphor bronze, nickel plated on the surface

Wire gauge: 23 24AWG
