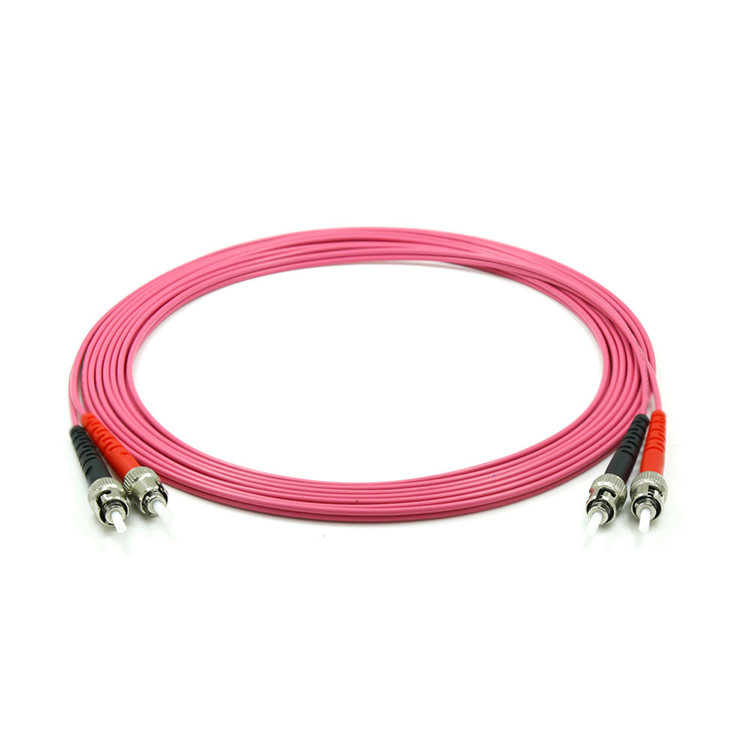

ST/UPC Multi Mode Patch Cord
Linoya ST-ST fiber jumper adopts high-precision ceramic ferrule with smaller concentricity error and inner hole diameter, and advanced grinding technology and grinding equipment, which can not only p
Product Features
Product Specifications
Download
1. The product adopts imported pottery pins and imported high-quality optical fiber cables;

2. The introduction of foreign advanced grinding technology and grinding equipment can effectively ensure that the center of the optical fiber is polished and flattened, the dent of the optical fiber, the surface of the optical fiber is free of scratches and defects, and the size and level of the radius of curvature of the ceramic end face meet the standard requirements;

3. The insertion loss is small, the return loss is large, the interchangeability is good, and the repeated plugging performance is excellent, making it easy to use;

4. A full set of customized services can be provided according to customer requirements.

5. All components have been optically tested, and the tests are in compliance with ROHS standards;

6. Comply with ANSI/TIA/EIA and ISO/IEC for durability, moisture resistance, coupling stress, fiber tensile force, and adaptability to harsh environments such as humidity, extreme temperature, insertion force and cable tensile stress, impact and vibration Require;

7. Suitable working temperature (-40℃~+75), storage temperature (-40℃~+85℃)

                         Type

    Performance

Single mode

Multi mode



UPC

APC

UPC

Insertion Loss

Max

≤ 0.3dB

≤ 0.3dB

≤ 0.3dB



Typical

0.2dB

0.2dB

0.2dB

Return Loss

≥ 50dB

≥ 55dB

≥ 35dB

Testing Wavelength

1310nm & 1550nm

850nm & 1300nm

Technical performance（500 times）

IL < 0.1dB
