Home > Product

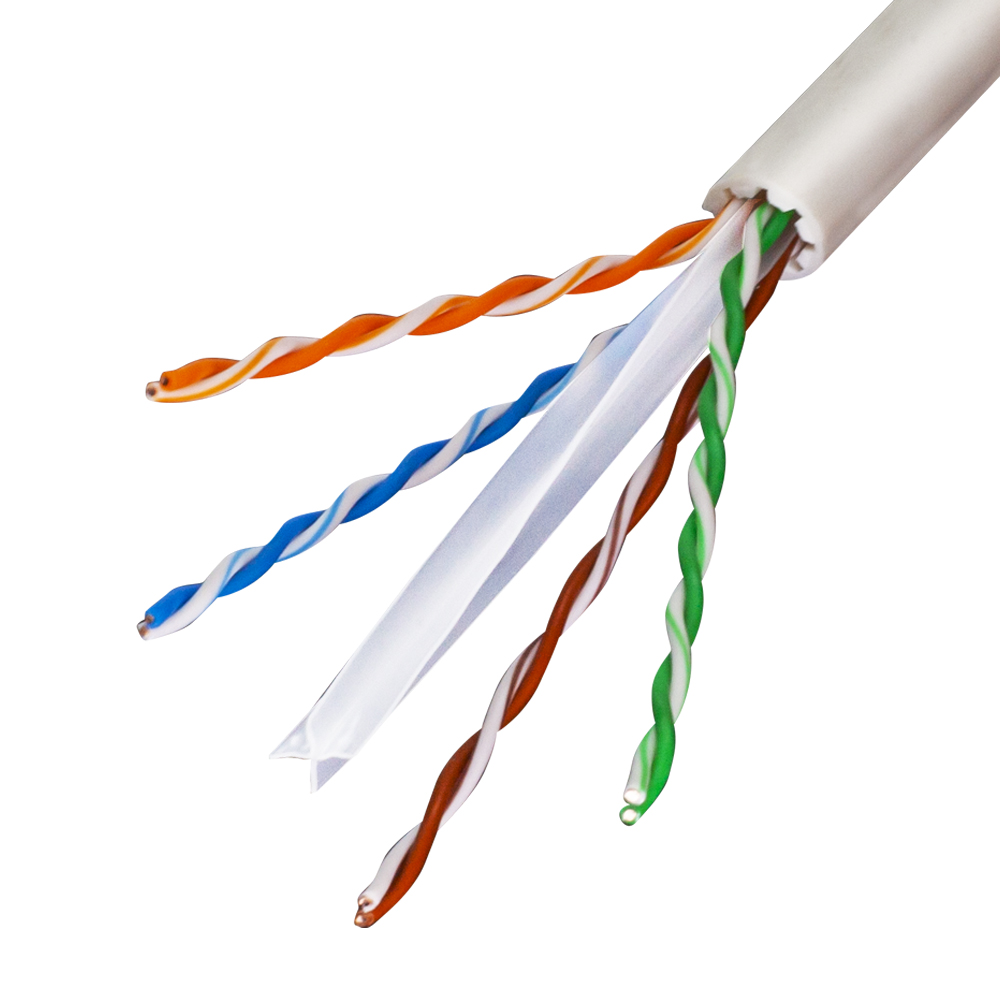

CAT6A UTP
The use of high-quality copper materials ensures the excellent tensile properties and resistance properties of the product. The optimized design of the high-speed cable pitch technology production pr
Product Features
Product Specifications
Download
Electrical parameters (20℃)

Transmission delay difference: ≤ 45 ns/100 m

Transmission speed: 69%

DC resistance: ≤ 9.38 Ω/100 m

Unbalanced DC resistance: ≤ 5%





Physical parameter

Conductor: solid bare copper 23AWG

Insulation material: HDPE

Insulation diameter: 1.12±0.05 mm

Sheath diameter: 7.1±0.5 mm

Sheath material: PVC LSZH

Working temperature: -30 ℃～60 ℃
