Home > Product

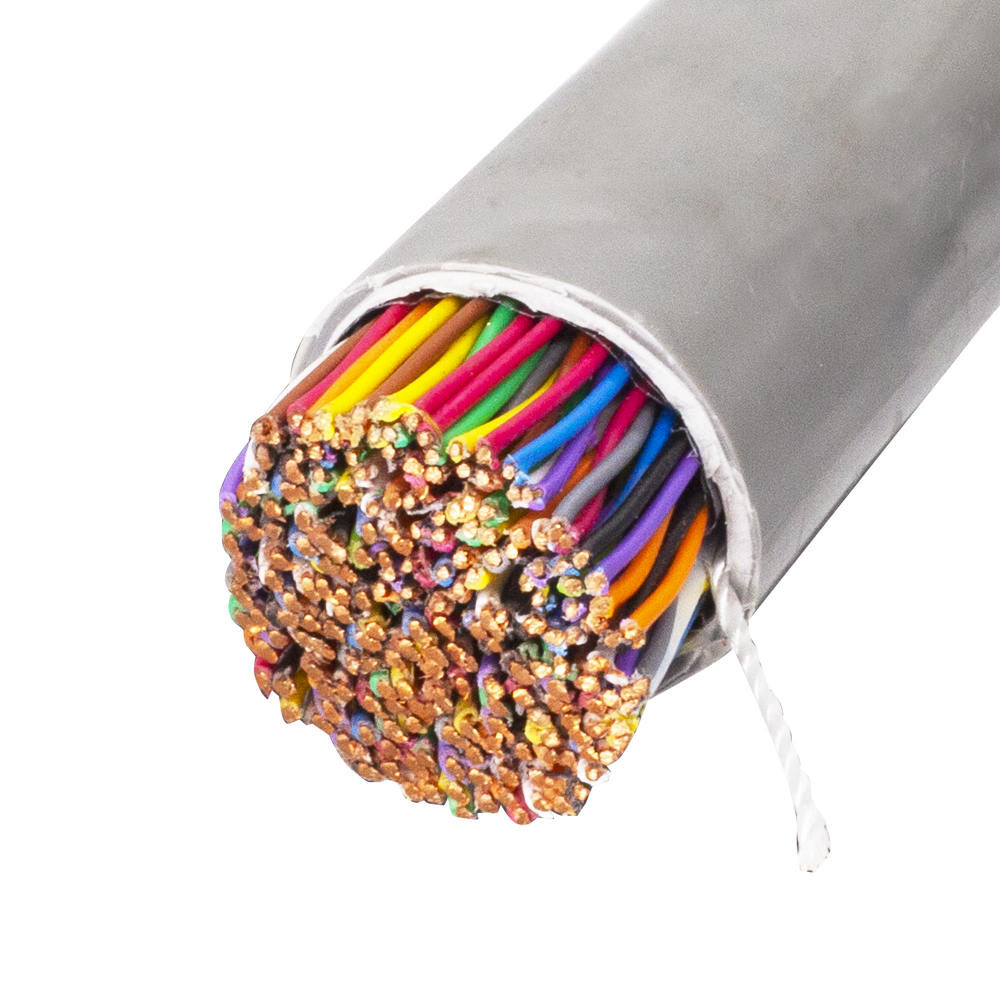

25P-100P CAT5E
25 pairs -100 pairs five categories Use high-quality oxygen-free copper materials to ensure the excellent tensile properties and resistance properties of the product. Designed specifically for telephone, multimedia and backbone systems. Use environmentally friendly materials and comply with REACH and RoHS requirements
Product Features
Product Specifications
Download
Electrical parameters (20℃)

Transmission delay difference: ≤ 45 ns/100 m

Transmission speed: 69%

Electric capacity: ≤ 6.6 nf/100 m

DC resistance: ≤ 9.5Ω/100 m

Unbalanced DC resistance: ≤ 5%
Physical parameter
Conductor: solid bare copper 24AWG

Insulation material: high density polyethylene

Insulation diameter: 0.90±0.05

Sheath diameter: 13.3±0.8 mm (25 pairs)

Sheath material: PVC

Working temperature: -20 ℃～60 ℃
