Home > Product

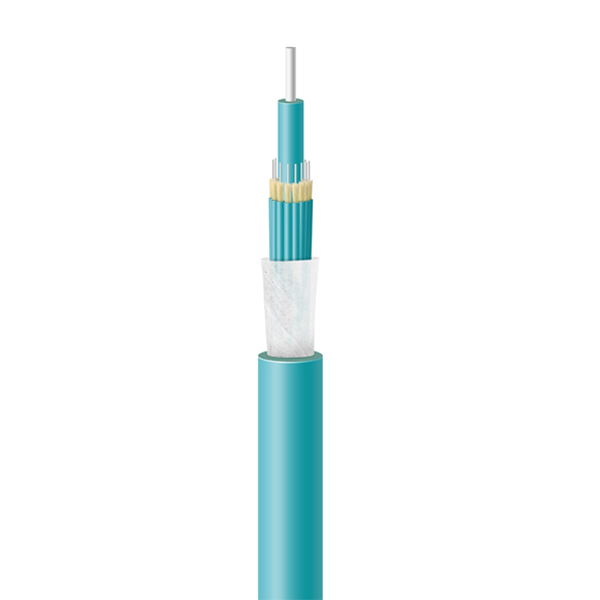

Indoor branch cable
The structure of GJBFJV optical cable is to place an aramid strengthening element on the surface of the tightly buffered optical fiber and then extrude the sheath to form a sub-unit.
Product Features
Product Specifications
Download
·Each sub-cable contains aramid reinforced fiber, which has good flexibility, does not contain grease, is hygienic and clean, and is easy to construct and connect.

·The optical fiber in the sub-cable adopts a tight sleeve design, and has independent strengthening elements and sheaths, which can prevent damage caused by environmental and mechanical stress.

·Low-smoke, low-halogen, flame-retardant jacket, with anti-extendable and self-extinguishing properties, suitable for indoor environments such as computer rooms, cable shafts, and wiring in walls.

·Low-smoke halogen-free flame-retardant polyolefin sheath, anti-ultraviolet, waterproof, mildew, environmental stress crack resistance; and no acid gas release, does not corrode equipment room equipment, suitable for indoor and outdoor use or indoor environments that require high flame retardancy (such as Ceiling wiring, open wiring, etc.) use.

芯数
     Fiber Count

子单元外径
     Subunit Diameter
     mm

光缆直径
     Cable Diameter
     mm

光缆重量
     Cable Weight
     Kg/km

允许拉伸力
     Tensile Strength
     长期/短期
     Long/Short Term
     N

允许压扁力
     Crush Resistance
     长期/短期
     Long/Short Term
     N/100m

弯曲半径
     Bending Radius
     静态/动态
     Static/Dynamic
     mm

2芯

2.0

7.0±0.5

45

500/1000

400/800

30D/15D

4芯

2.0

7.0±0.5

45

500/1000

400/800

30D/15D

6芯

2.0

8.3±0.5

62

500/1000

400/800

30D/15D

8芯

2.0

9.4±0.5

85

500/1000

400/800

30D/15D

10芯

2.0

10.7±0.5

109

500/1000

400/800

30D/15D

12芯

2.0

12.2±0.5

140

500/1000

400/800

30D/15D
