Indoor Bundle Steel Tape Armored Optical Cable

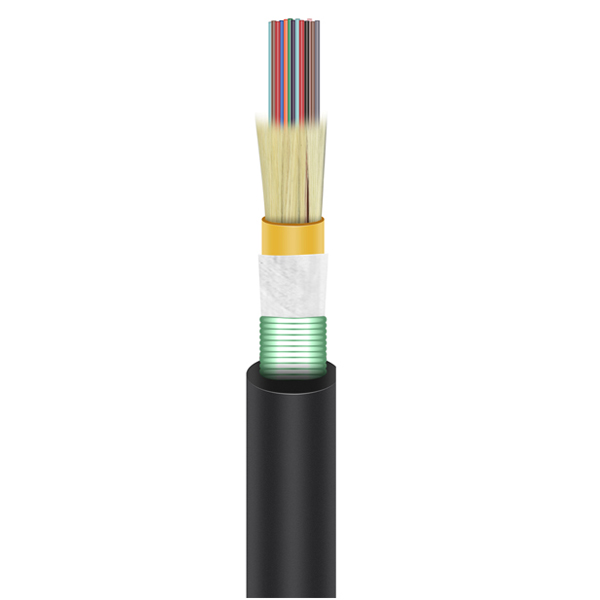

The fiber optic cable structure is to twist ф900μm or ф600μm tight-buffered optical fiber and multi-strand aramid fiber together, extrude a layer of LSZH inner sheath on the twisted surface.
Product Features
Product Specifications
Download
·The multi-core optical cable is armored with steel tape to improve the resistance to compression and rat bite.

·High-strength aramid fiber reinforced, high-performance sheath material outer protection.

·Has good mechanical and environmental performance.

·Good lateral water blocking ability.

光缆型号 Cable Type

光纤数 Fiber Count

紧包外径 Tight Diameter
     mm

光缆直径
Cable Diameter
     mm

光缆重量
Cable Weight
     Kg/km

允许拉伸力 Tensile Strength
 长期/短期
     Long/Short Term
N

允许压扁力Crush Resistance
 长期/短期
     Long/Short Term
N/100m

弯曲半径
Bending Radius
 静态/动态
     Static/Dynamic
mm

GJFJH53

12

0.9

12.5

124

400/800

200/1000

30D/105D

GJFJH53

24

0.9

13.5

158

400/800

200/1000

30D/105D

   Storage and use temperature: -20℃ to +60℃
