Central tube light armored optical cable

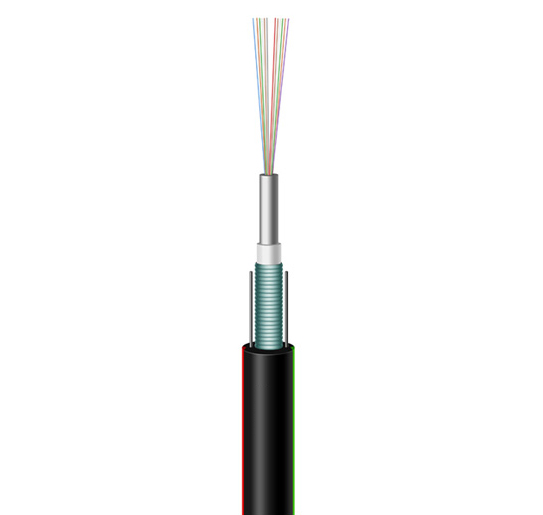

The structure of GYXTW optical cable is to sheath 250μm optical fiber into a loose tube made of high modulus material, and the loose tube is filled with waterproof compound.
Product Features
Product Specifications
Download
·Have good mechanical properties and temperature characteristics

·The loose tube material itself has good water resistance and high strength

·The tube is filled with special grease to protect the optical fiber critically

·Good pressure resistance

·Double-sided plastic coated steel tape (PSP) improves the ability of optical cable to resist lateral pressure

·Two parallel steel wires ensure the tensile strength of the optical cable

·PE sheath has good anti-ultraviolet radiation performance

·Small diameter, light weight, easy to lay

·Long delivery length

光缆型号
   Cable Type

光纤数
Fiber Count

光缆直径
Cable Diameter
mm

光缆重量
Cable Weight
Kg/km

允许拉伸力
Tensile Strength
长期/短期
Long/Short Term  N

允许压扁力
Crush Resistance
长期/短期
Long/Short Term
N/100m

弯曲半径
Bending Radius
静态/动态
Static/Dynamic
mm

GYXTW-2～12

2～12

9.0

85

600/1000

500/1500

15D/30D

GYXTW-14～24

14～24

9.0

85

600/3000

1000/3000

15D/30D

GYXTW-2～12

2～12

10.0

105

1000/3000

1000/3000

15D/30D

GYXTW-14～24

14～24

10.0

105

1000/3000

1000/3000

15D/30D

GYXTW-26～36

26～36

14.0

190

1000/3000

1000/3000

15D/30D

GYXTW-38～48

38～48

15.0

216

1000/3000

1000/3000

15D/30D

Storage and use temperature: -40℃ to +70℃
