Home > Product

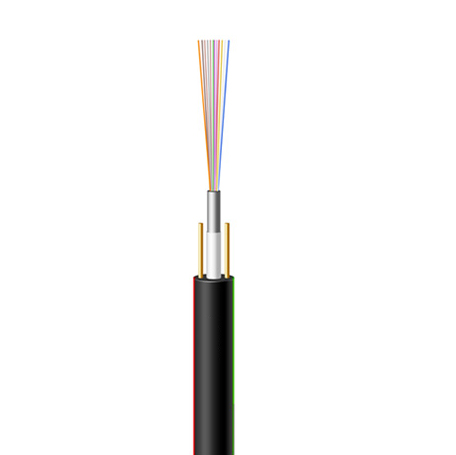

Central tube type non-metallic non-light armored optical cable
The structure of GYFXY optical cable is to sheath 250μm optical fiber into a loose tube made of high modulus material, and the loose tube is filled with waterproof compound.
Product Features
Product Specifications
Download
·Have good mechanical properties and temperature characteristics

·The non-metallic structure design effectively prevents radio frequency interference and electromagnetic wave interference, and is suitable for wiring in minefields.

·The loose tube material itself has good water resistance and high strength

·The tube is filled with special grease to protect the optical fiber critically

·Good pressure resistance and flexibility

·PE sheath has good anti-ultraviolet radiation performance

·Two FRP to ensure the tensile strength of the optical cable

·Small diameter, light weight, easy to lay

·Long delivery length

光缆型号
Cable Type

光纤数
Fiber Count

光缆直径
Cable Diameter
mm

光缆重量
Cable Weight
Kg/km

允许拉伸力
Tensile Strength
长期/短期
Long/Short Term N

允许压扁力
Crush Resistance
长期/短期
Long/Short Term
N/100m

弯曲半径
Bending Radius
静态/动态
Static/Dynamic
mm

GYFXY-2～12

2～12

9.0

70

500/350

300/1000

15D/30D

GYFXY-2～12

2～12

10.2

90

600/350

400/1000

15D/30D

Storage and use temperature: -40℃ to +70℃
