Home > Product

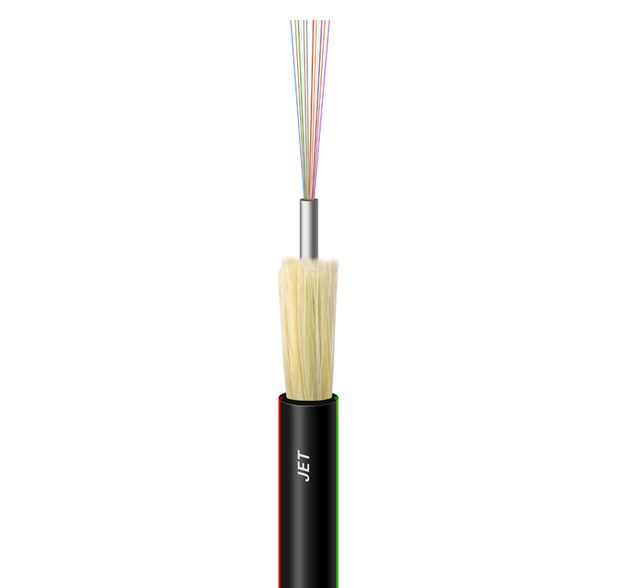

JET indoor/outdoor dual-purpose wiring optical cable
The structure of GYFXTY optical cable is to sleeve ф250μm optical fiber into a loose tube made of high modulus material. The loose tube is filled with waterproof compound,and the loose tube is twist.
Product Features
Product Specifications
Download
·Non-metallic structure design effectively prevents radio frequency interference and electromagnetic wave interference

·Especially compact fiber optic cable structure, effectively preventing the sleeve from retracting

·Aramid or high-strength glass yarn reinforcing elements make the optical cable have excellent tensile properties

·Good fire resistance

·Using high-strength glass yarn to prevent rat bites

·The fiber assembly density is high, the cable diameter is small, the weight is light, and it has good flexibility and tensile resistance. The sheath is made of UV-resistant PE or LSZH material, which can be flexibly wired between indoor and outdoor.

光缆型号
Cable Type

光纤数
Fiber Count

光缆直径
Cable Diameter
mm

光缆重量
Cable Weight
Kg/km

允许拉伸力
Tensile Strength
长期/短期
Long/Short Term
N

允许压扁力
Crush Resistance
长期/短期
Long/Short Term
N/100m

弯曲半径
Bending Radius
静态/动态
Static/Dynamic
mm

GYFXTY

2-24

6.0

20

1000/2000

200/400

30D/15D

GYFXTY

2-24

6.5

25

1200/2500

250/500

30D/15D

GYFXTY

2-24

7.0

28

1500/3000

250/500

30D/15D

GYFXTY

2-24

7.5

30

1800/3500

250/500

30D/15D

Storage and use temperature: -40℃ to +70℃
