Stranded non-metallic reinforced core non-armored optical cable

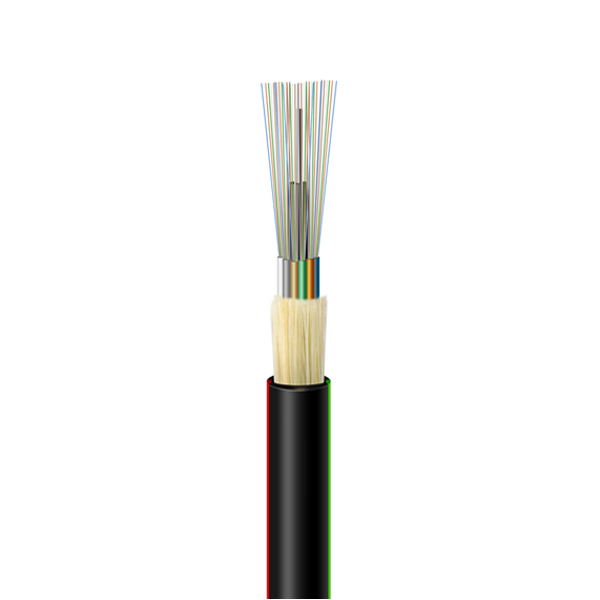

The structure of GYFTY optical cable is to sheath 250μm optical fiber into a loose tube made of high modulus material, and the loose tube is filled with waterproof compound.
Product Features
Product Specifications
Download
·Have good mechanical properties and temperature characteristics

·The loose tube material itself has good water resistance and high strength

·The tube is filled with special grease to protect the optical fiber critically

·Good pressure resistance and flexibility

· Use the following measures to ensure the waterproof performance of the optical cable:
     ·Single non-metallic center reinforced core
         ·The loose tube is filled with special waterproof compound
     ·Completely filled with cable core

Model

Core

Number of casing

Filling rope number

Cable Diameter
Mm

Fiber Cable Weight
  Kg/km

Allow stretching force
long-term/short-term
    N

Allow squashing force
  Long-term/short-term
   N/100mm

Bending radius
Static/dynamic       mm

GYFTY-2～6

2～6

1

4

9.0

88

800/1500

500/1000

  15D/30D

GYFTY-8～12

8～12

2

3

9.0

88

800/1500

500/1000

15D/30D

GYFTY-14～18

14～18

3

2

9.0

88

800/1500

500/1000

15D/30D

GYFTY-20～24

20～24

4

1

9.0

88

800/1500

500/1000

15D/30D

GYFTY-26～30

26～30

5

0

9.0

88

800/1500

500/1000

15D/30D

GYFTY-32～36

32～36

5

0

9.0

88

800/1500

500/1000

15D/30D

GYFTY-38～48

38～48

5

0

9.0

88

800/1500

500/1000

15D/30D

GYFTY-50～60

50～60

5

0

9.0

88

800/1500

500/1000

15D/30D

GYFTY-62～72

62～72

6

0

9.5

100

1000/2000

500/1000

15D/30D

GYFTY-74～84

74～84

7

1

10.5

120

1000/2000

500/1000

15D/30D

GYFTY-86～96

86～96

8

0

10.5

120

1500/2500

500/1000

15D/30D

GYFTY-98～108

98～108

9

1

11.5

150

1500/2500

500/1000

15D/30D

GYFTY-110～120

110～120

10

0

12.0

150

1500/2500

500/1000

15D/30D

GYFTY-122～144

122～144

12

0

13.0

150

1500/2500

500/1000

15D/30D

GYFTY-146～216

146～216

18

0

13.0

150

1000/2000

500/1000

15D/30D

Storage and use temperature: -40℃ to +70℃
