Stranded Ordinary Armored Optical Cable

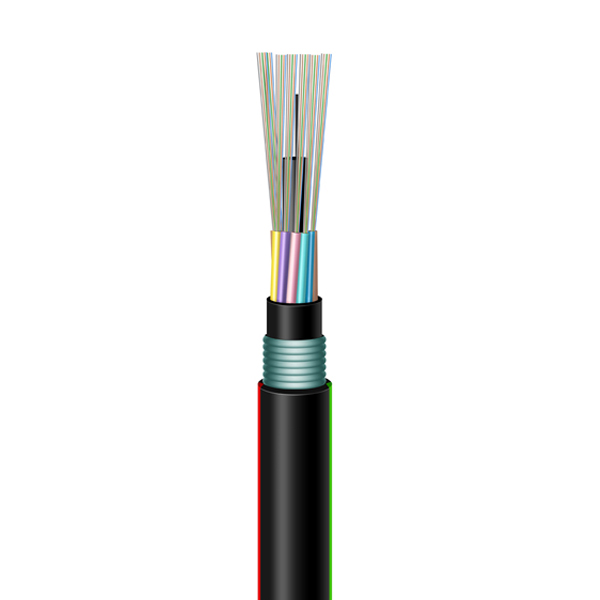

The structure of GYTY53 optical cable is that 250μm optical fiber is sheathed in a loose tube made of high modulus material, and the loose tube is filled with waterproof compound.

Product Features

Product Specifications

Download

·Have good mechanical properties and temperature characteristics

·The loose tube material itself has good water resistance and high strength

·The tube is filled with special grease to protect the optical fiber critically

·Specially designed compact optical cable structure, effectively preventing the sleeve from retracting

·PE sheath has good anti-ultraviolet radiation performance

·Good pressure resistance, suitable for pipelines or direct buried wiring

· Use the following measures to ensure the waterproof performance of the optical cable:
     ·Single steel wire center reinforced core
     ·The loose tube is filled with special waterproof compound
     ·Completely filled with cable core
     ·Double-sided plastic coated steel tape (PSP) improves the moisture resistance of the optical cable
     ·Good water blocking material prevents longitudinal water seepage of the optical cable

Model	Core	Number of casing T	Filling rope number s	Cable diameter mm	Optical cable weight Kg/km	Allowable tensile force Long-term/short-term N	Allowed crushing force long-term/short-term N/100m	Bending radius Static/dynamic mm
GYTY53-2～6	2～6	1	4	12.5	160	1000/3000	1000/3000	15D/30D
GYTY53-8～12	8～12	2	3	12.5	160	1000/3000	1000/3000	15D/30D
GYTY53-14～18	14～18	3	2	12.5	160	1000/3000	1000/3000	15D/30D
GYTY53-20～24	20～24	4	1	12.5	160	1000/3000	1000/3000	15D/30D
GYTY53-26～30	26～30	5	0	12.5	160	1000/3000	1000/3000	15D/30D
GYTY53-32～36	32～36	5	0	12.5	160	1000/3000	1000/3000	15D/30D
GYTY53-38～48	38～48	5	0	12.5	160	1000/3000	1000/3000	15D/30D
GYTY53-50～60	50～60	5	0	12.5	160	1000/3000	1000/3000	15D/30D
GYTY53-62～72	62～72	6	0	13.2	200	1000/3000	1000/3000	15D/30D
GYTY53-74～84	74～84	7	1	15.0	240	1000/3000	1000/3000	15D/30D
GYTY53-86～96	86～96	8	0	15.0	240	1000/3000	1000/3000	15D/30D
GYTY53-98～108	98～108	9	1	16.0	280	1000/3000	1000/3000	15D/30D
GYTY53-110～120	110～120	10	0	16.0	280	1000/3000	1000/3000	15D/30D
GYTY53-122～132	122～132	11	1	18.0	290	1000/3000	1000/3000	15D/30D
GYTY53-130～144	134～144	12	0	18.0	290	1000/3000	1000/3000	15D/30D
GYTY53-146～216	134～144	18	0	18.0	290	1000/3000	1000/3000	15D/30D

Storage and use temperature: -40℃ to +70℃
