Home > Product

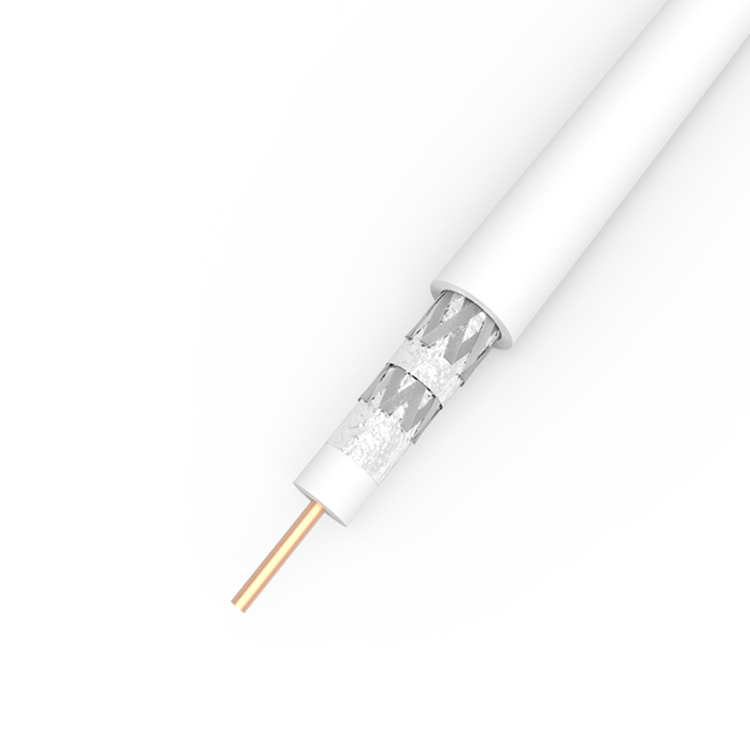

Coaxial Wire
Widely used in closed-circuit television systems, shared antenna systems as branch lines and subscriber lines, connection lines or internal wiring of other high-frequency equipment, and radio signal
Product Features
Product Specifications
Download

1. Excellent conductor medium, low attenuation and high signal transmission

2. High-performance physical foam insulation, low dielectric constant, low attenuation loss, and stable long-distance transmission.

3. The product has passed UL444 certification and is of high quality.


-Inner conductor: 1.02mm copper or copper clad steel conductor
-Insulation: 4.57mm foamed polyethylene
-Shield 1: Aluminum foil
-Shield 2: Copper wire braid (tinned wire, aluminum-magnesium wire) (optional)
-Shield 3: Aluminum foil
-Shield 4: Copper wire braid (tinned wire, aluminum-magnesium wire) (optional)
-Sheath: 7.54mm polyvinyl chloride (low-smoke halogen-free, polyethylene) (optional)
-Flame retardant grade: CMX, CM, CMR, CATVX, CATV, CATVR
-Working temperature: -25～70℃ or -40～70℃
-Related standard: MIL-C-17
