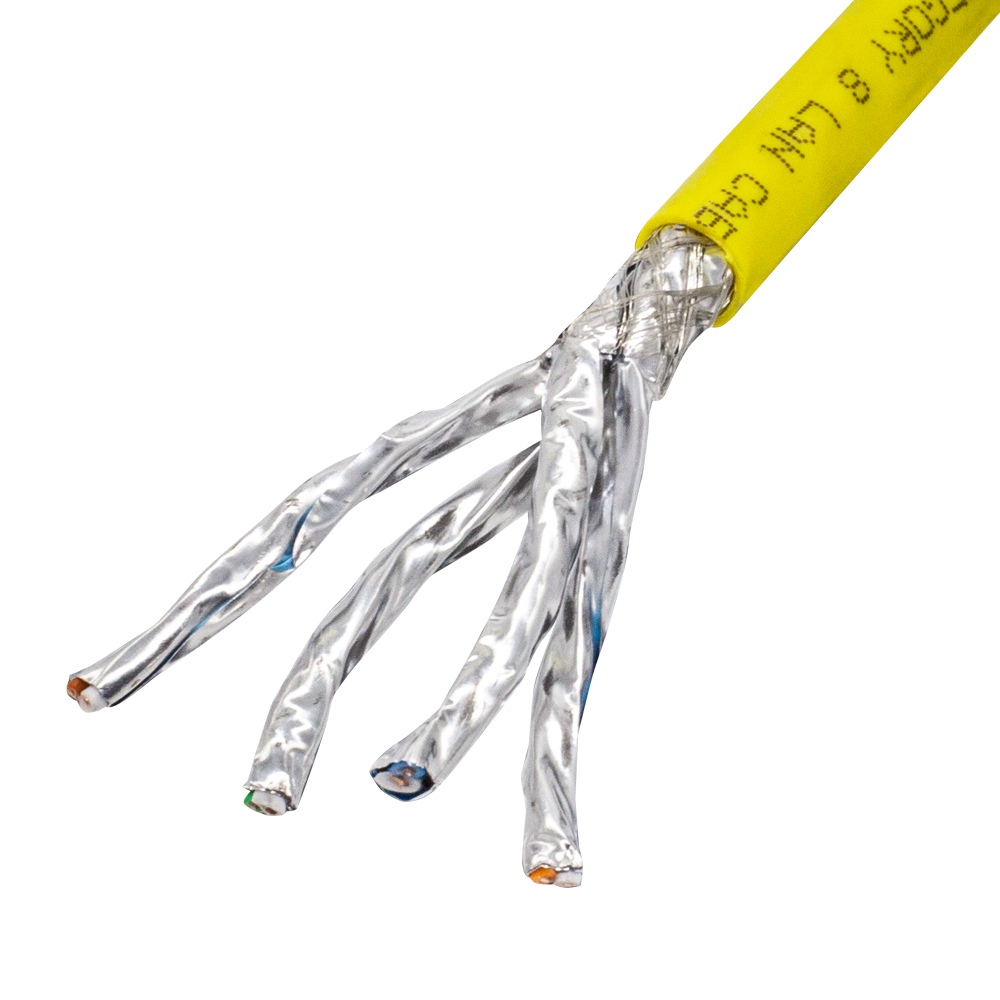

CAT8 SFTP
It is specially designed for 25/40G Ethernet transmission, and the test bandwidth is up to 2000MHz. Advanced shielding technology and high-quality copper materials are used to ensure the excellent tensile properties and resistance properties of the product. Optimized design of high-speed cable pitch technology and skin foam insulation production process, which greatly improves the margin of transmission performance indicators such as crosstalk and return loss, obtains higher transmission bandwidth, and fully complies with REACH and RoHS requirements
Product Features
Product Specifications
Download

Electrical parameters (20℃)



Transmission delay difference: ≤ 45 ns/100 m



Transmission speed: 69%



Electric capacity: ≤ 5.6 nf/100 m



DC resistance: ≤ 9.5 Ω/100 m



Unbalanced DC resistance: ≤ 5%

Physical parameter
Conductor: solid bare copper, 22AWG
Insulation material: skin foam skin polyethylene
Insulation diameter: 1.56 ±0.1mm (nom)
Wire pair shielding: aluminum foil
Braided shield: tinned copper
Sheath diameter: 8.2±0.35 mm
Sheath material: PVC, LSZH, PE
Working temperature: -30 ℃～60 ℃
