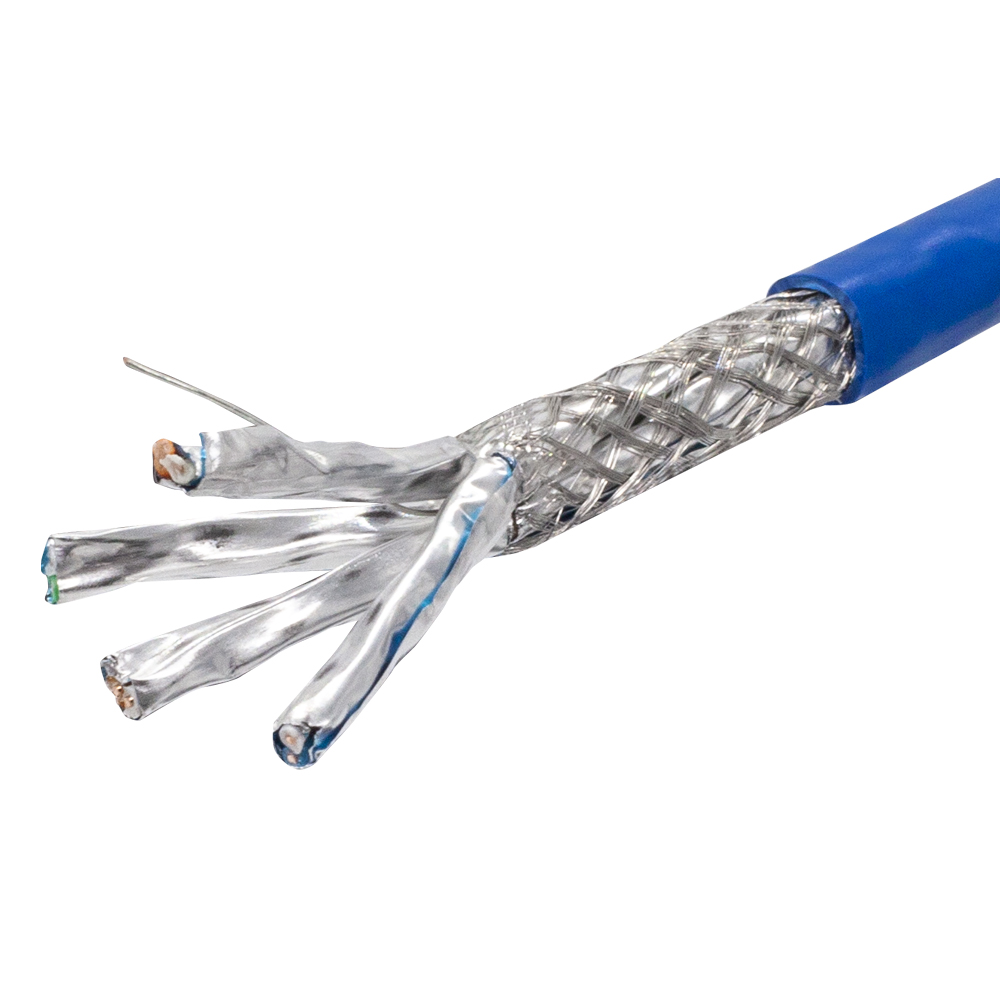

CAT7 SFTP
The use of high-quality oxygen-free copper materials ensures excellent tensile properties and electrical resistance properties of the product. Optimized design of high-speed cable pitch technology and skin foam insulation production process, which greatly improves the margin of transmission performance indicators such as crosstalk and return loss, and obtains higher transmission bandwidth. The product fully complies with REACH and RoHS requirements
Product Features
Product Specifications
Download
Electrical parameters (20℃)

Transmission delay difference: ≤ 45 ns/100 m

Transmission speed: 74%

DC resistance: ≤ 9.38 Ω/100 m

Unbalanced DC resistance: ≤ 5%

Unbalanced capacitance to ground: ≤ 330 pf/100 m
Physical parameter

Conductor: solid bare copper 23AWG

Insulation material: skin foam skin polyethylene

Insulation diameter: 1.33±0.05 mm

Shield: wire-to-aluminum foil + braided total shield (S/FTP)

Sheath diameter: 7.8±0.5 mm (S/FTP)

Sheath material: PVC, LSZH

Working temperature: -30 ℃～60 ℃
