Home > Product

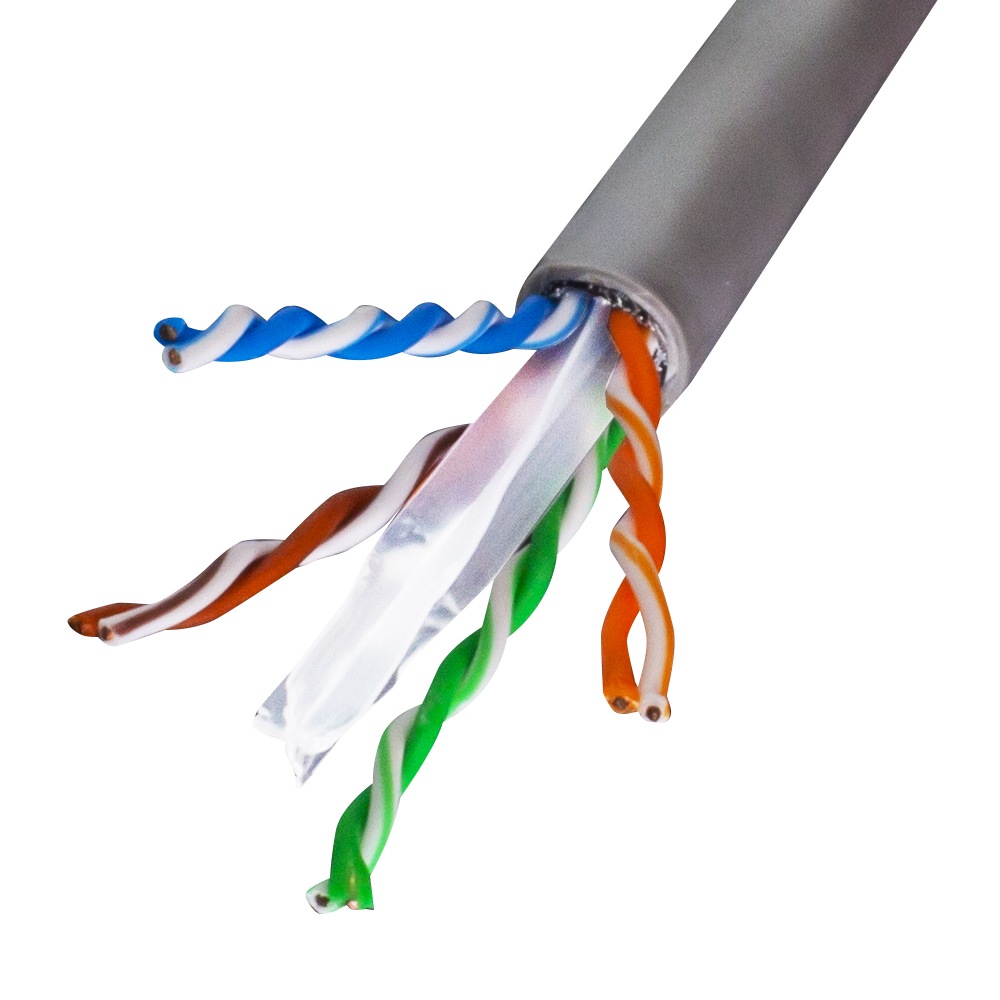

CAT6A UTP
The use of high-quality copper materials ensures the excellent tensile properties and resistance properties of the product. The optimized design of the high-speed cable pitch technology production process greatly improves the margin of transmission performance indicators such as crosstalk and return loss, and obtains a higher transmission bandwidth. Products fully comply with REACH and RoHS requirements.
Product Features
Product Specifications
Download

Electrical parameters (20℃)



Transmission delay difference: ≤ 45 ns/100 m



Transmission speed: 69%



Electric capacity: ≤ 5.6 nf/100 m



DC resistance: ≤ 9.5 Ω/100 m



Unbalanced DC resistance: ≤ 5%






Physical parameter

Conductor: solid bare copper 23AWG

Insulation material: HDPE

Insulation diameter: 1.12±0.05 mm

Sheath diameter: 7.1±0.5 mm

Sheath material: PVC LSZH

Working temperature: -30 ℃～60 ℃
