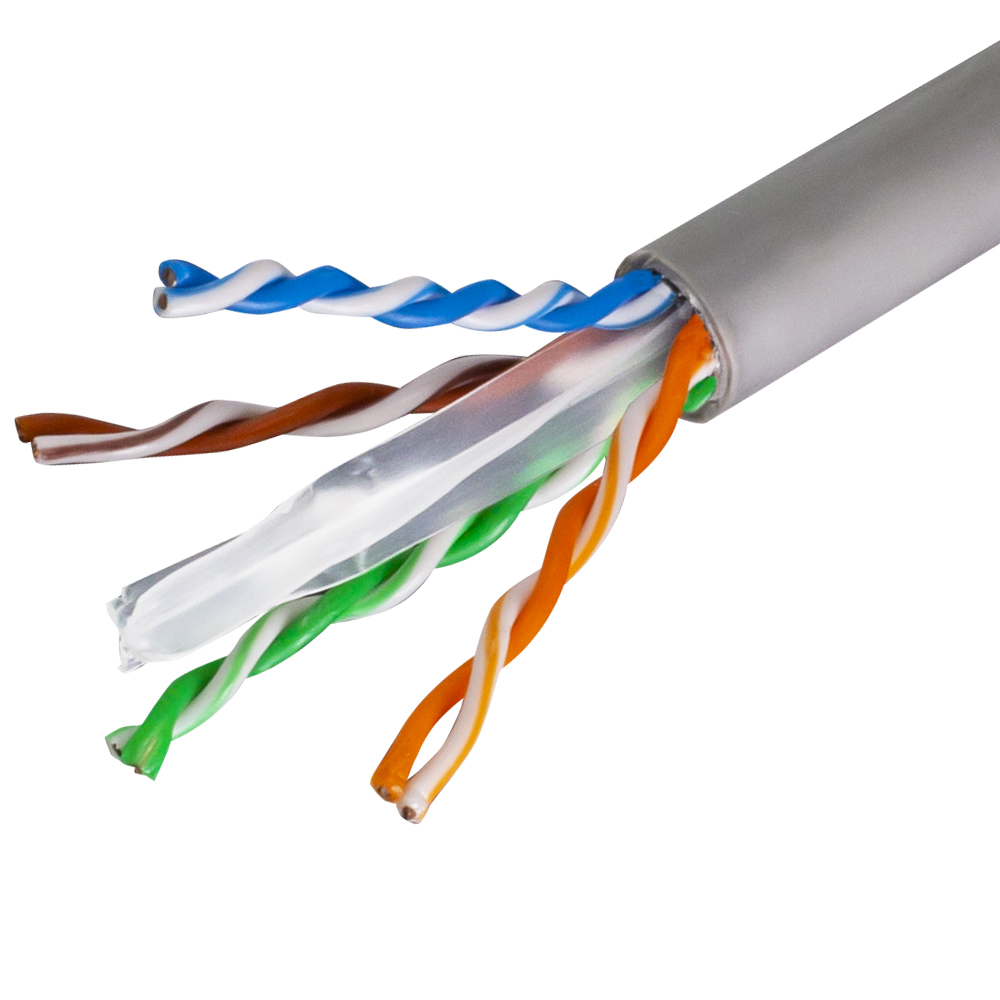

CAT6 UTP
High-quality copper materials are used to ensure the excellent tensile properties and resistance properties of the product; the optimized design of high-speed cable pitch technology and high-speed cable production technology. Pass the authoritative third-party testing organization, support 250MHz bandwidth test The product fully complies with REACH and RoHS requirements
Product Features
Product Specifications
Download

Electrical parameters (20℃)



Transmission delay difference: ≤ 45 ns/100 m



Transmission speed: 69%



Electric capacity: ≤ 5.6 nf/100 m



DC resistance: ≤ 9.5 Ω/100 m



Unbalanced DC resistance: ≤ 5%



Physical parameter

Conductor: solid bare copper 23AWG

Insulation material: HDPE

Insulation diameter: 0.98±0.05 mm

Sheath diameter: 6.0±0.5 mm

Sheath material: PVC or LSZH or PE

Working temperature: -30℃～60℃
