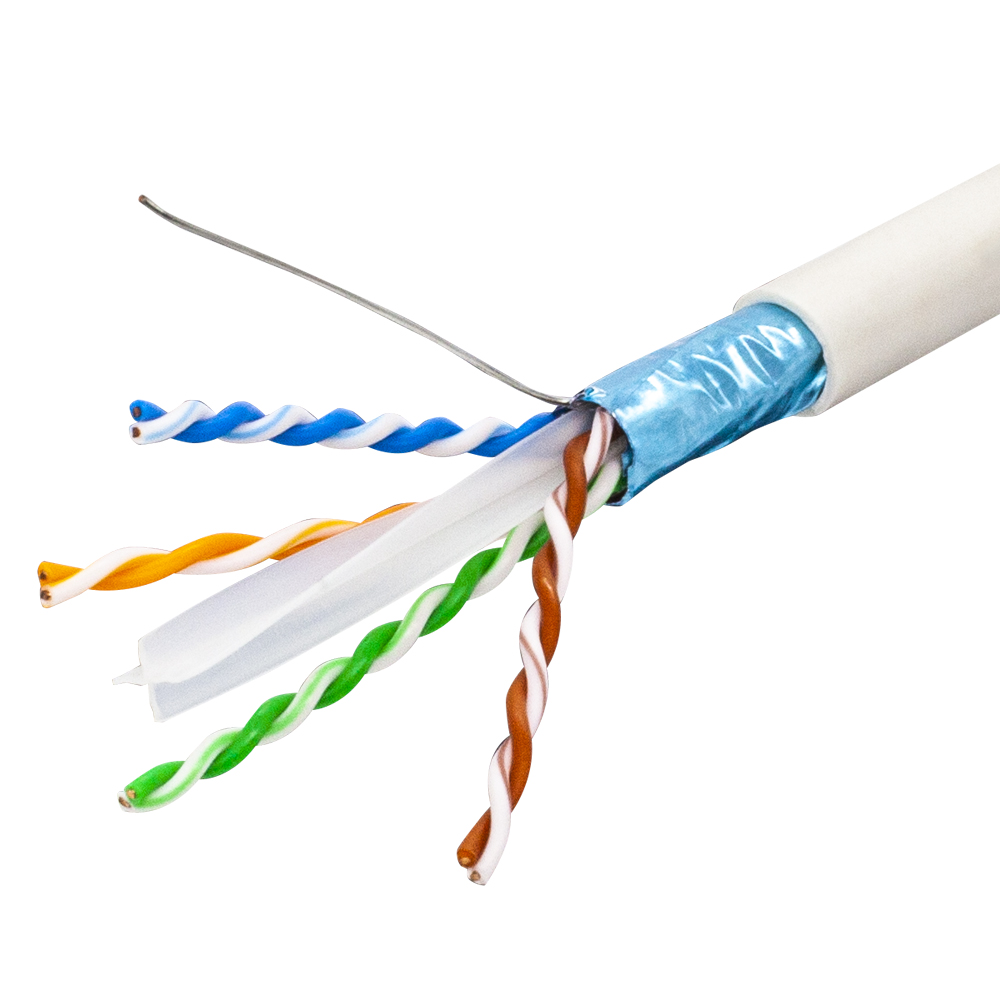

CAT6 FTP
High-quality copper materials are used to ensure the excellent tensile properties and resistance properties of the product; the optimized design of high-speed cable pitch technology and high-speed cable production technology. Pass the authoritative third-party testing organization, support 250MHz bandwidth test The product fully complies with REACH and RoHS requirements
Product Features
Product Specifications
Download

Electrical parameters (20℃)



Transmission delay difference: ≤ 45 ns/100 m



Transmission speed: 69%



Electric capacity: ≤ 5.6 nf/100 m



DC resistance: ≤ 9.5 Ω/100 m



Unbalanced DC resistance: ≤ 5%


Physical parameter

Conductor: solid bare copper 23AWG
Insulation material: HDPE
Insulation diameter: 1.12±0.05 mm
Single-layer total shielding: aluminum foil
Sheath diameter: 8.0±0.5 mm (F/UTP)
Sheath material: PVC, LSZH, PE
Working temperature: -20 ℃～60 ℃ (PVC)
                 -30 ℃～ 60 ℃ (LSZH)
