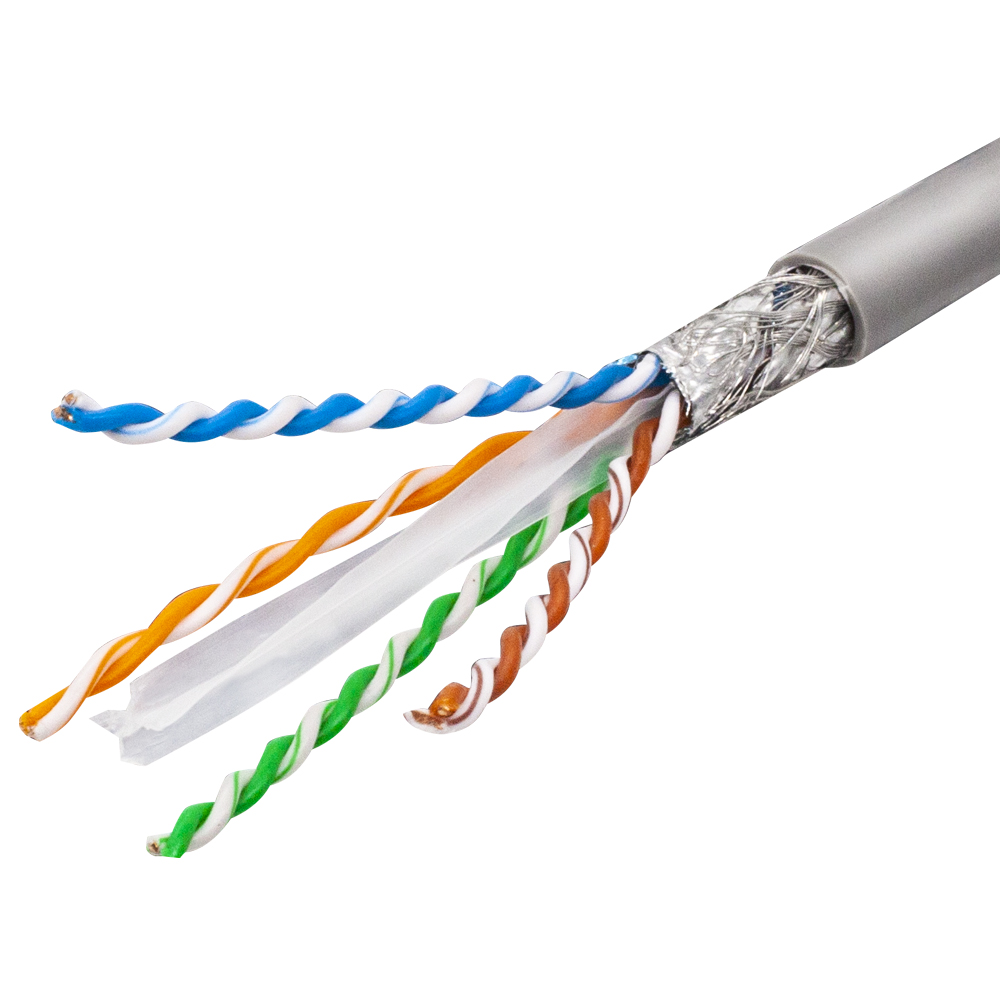

CAT6 SFTP
High-quality copper materials are used to ensure the excellent tensile properties and resistance properties of the product; the optimized design of high-speed cable pitch technology and high-speed cable production technology. Pass the authoritative third-party testing organization, support 250MHz bandwidth test The product fully complies with REACH and RoHS requirements
Product Features
Product Specifications
Download
Electrical parameters (20℃)
Transmission delay difference: ≤ 45 ns/100 m
Transmission speed: 69%
Electric capacity: ≤ 5.6 nf/100 m
DC resistance: ≤ 9.38 Ω/100 m
Unbalanced DC resistance: ≤ 5%
Unbalanced capacitance to ground: ≤ 330 pf/100 m
Physical parameter

Conductor: solid bare copper 23AWG
Insulation material: HDPE
Insulation diameter: 1.12±0.05 mm
Double-layer general shield: aluminum foil + tinned copper
Sheath diameter: 7.8±0.4 mm (SF/UTP)
Sheath material: PVC, LSZH
Working temperature: -20 ℃～60 ℃ (PVC)
                 -30 ℃～ 60 ℃ (LSZH)
