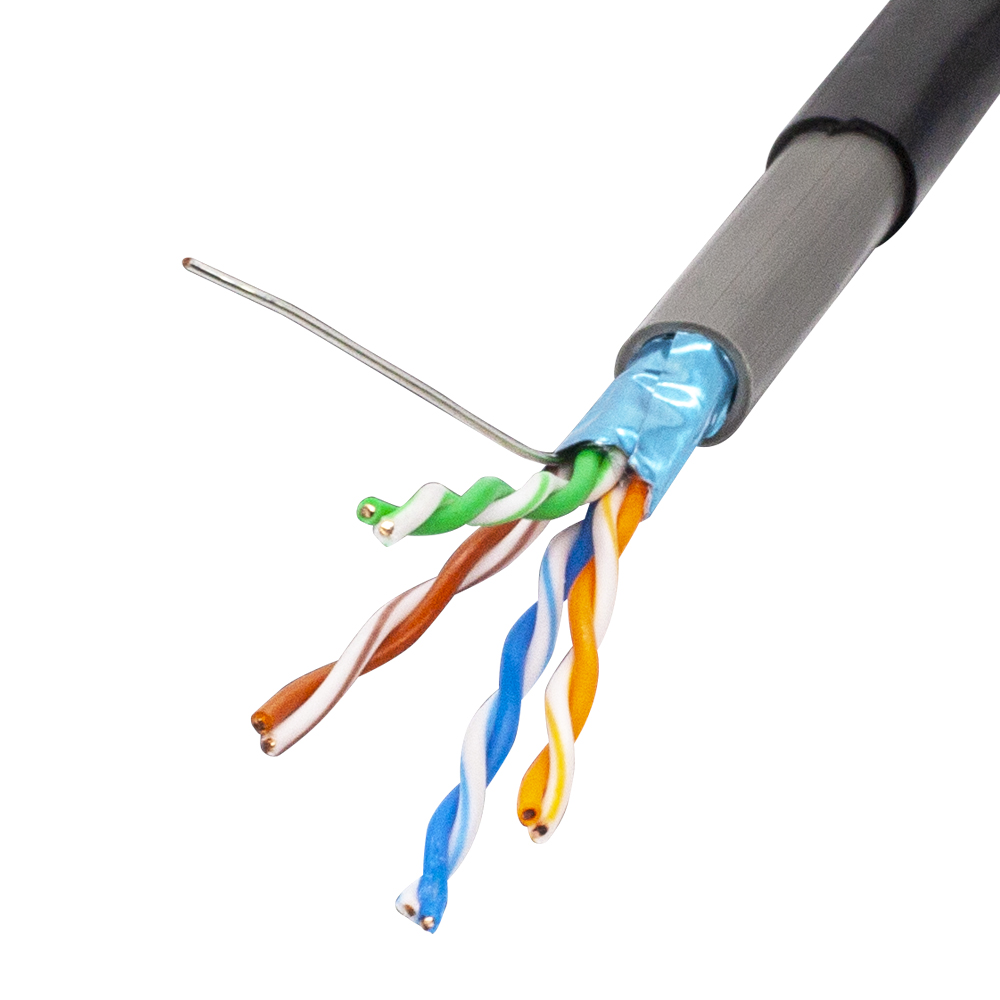

CAT5E 24AWG Outdoor
The use of high-quality oxygen-free copper materials ensures excellent tensile properties and resistance properties; optimized design of high-speed cable pitch technology and high-speed cable production technology. Through authoritative third-party testing agencies, the products fully comply with REACH and RoHS requirements
Product Features
Product Specifications
Download

Electrical parameters (20)



Transmission delay difference: 45 ns/100 m



Transmission speed: 69%



Electric capacity: 5.6 nf/100 m



DC resistance: 9.5 Ω/100 m



Unbalanced DC resistance: 5%


Physical parameter

Conductor: solid bare copper 24AWG

Insulation material: HDPE

Insulation diameter: 0.88±0.05 mm

Sheath diameter: 5.0±0.4 mm

Sheath material: PE

Working temperature: -20 ℃~60 ℃ (PVC)

                -30 ℃~ 60 ℃ (PE)
