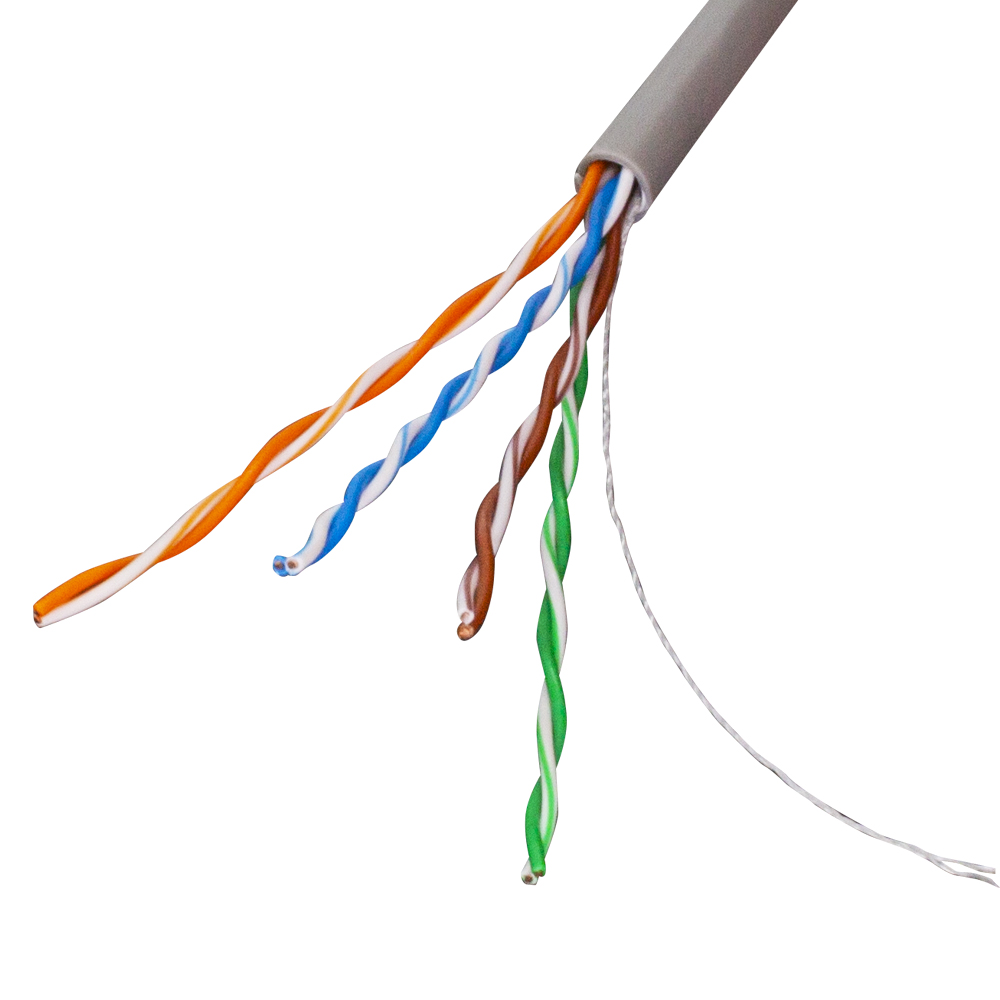

CAT5E 24AWG UTP
The use of high-quality oxygen-free copper materials ensures excellent tensile properties and resistance properties; optimized design of high-speed cable pitch technology and high-speed cable production technology. Through authoritative third-party testing agencies, the products fully comply with REACH and RoHS requirements
Product Features
Product Specifications
Download

Electrical parameters (20)



Transmission delay difference: 45 ns/100 m



Transmission speed: 69%



Electric capacity: 5.6 nf/100 m



DC resistance: 9.5 Ω/100 m



Unbalanced DC resistance: 5%


Physical parameter



Conductor: solid bare copper 24AWG



Insulation material: HDPE



Insulation diameter: 0.88±0.05 mm



Sheath diameter: 5.0±0.4 mm



Sheath material: PVC or PE or LSZH



Working temperature: -20 ℃~60 (PVC)



                -30 ℃~ 60 (PE)
