9/125 LC/UPC

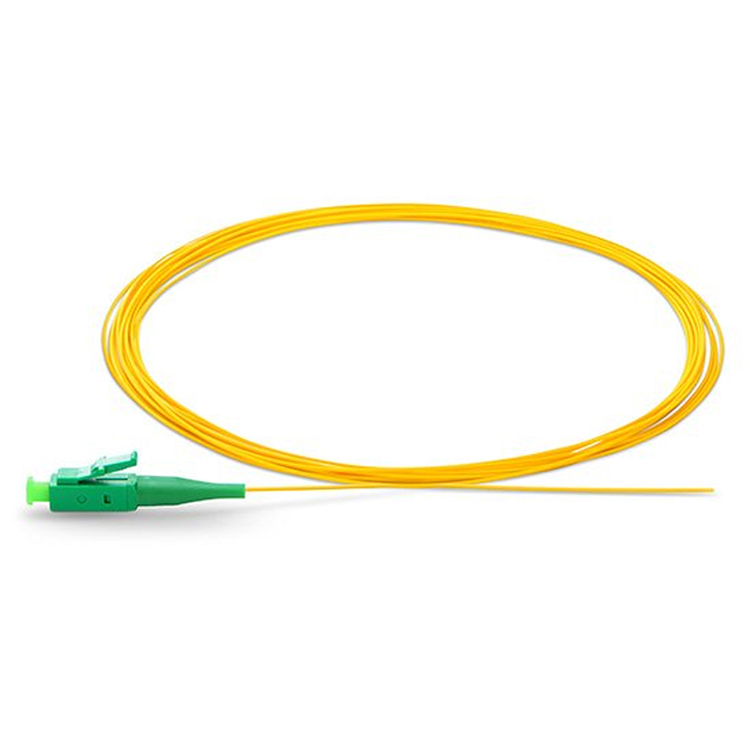

Linoya specializes in the development and production of9/125um LC/APC Fiber Pigtails, only one end has a connector, while the other end is a fiber core breakout, for the connection between the fiber optic terminal box to the equipment.
Product Features
Product Specifications
Download
1. Adopt advanced grinding technology and grinding equipment to ensure that the core has no offset, no scratches, no dents in the fiber, and the same end surface curvature radius;

2. The outer sheath of the 0.9mm optical cable can be used for high-density splicing applications;

3. The tight buffer layer protects the optical fiber from damage and is convenient for splicing;

4. Zirconia ceramic ferrule can obtain the best insertion loss and return loss.

                         Type

    Performance

Single mode

Multi mode



UPC

APC

UPC

Insertion Loss

Max

≤ 0.3dB

≤ 0.3dB

≤ 0.3dB



Typical

0.2dB

0.2dB

0.2dB

Return Loss

≥ 50dB

≥ 55dB

≥ 35dB

Testing Wavelength

1310nm & 1550nm

850nm & 1300nm

Technical performance（500 times）

IL < 0.1dB
