Home > Product

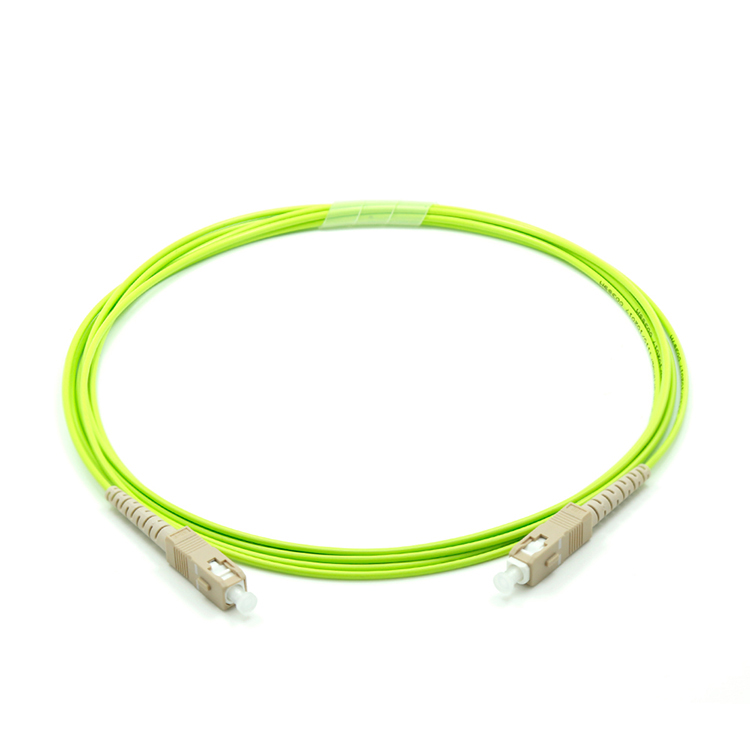

SC/UPC Multi Mode
Linoya SC-SC Fiber Optic Patch Cord adopts high precision ceramic insert with small concentricity error and inner hole diameter and advanced grinding technology and equipment,which can provide better insertion loss and return loss.
Product Features
Product Specifications
Download
1. Introduce foreign advanced polishing technology and polishing equipment to effectively ensure that the center of the optical fiber is polished and deviated, the dent of the optical fiber, the surface of the optical fiber is free of scratches and defects, and the size and grade parameters of the ceramic end surface curvature radius meet the standard requirements;

2. All components have been optically tested, and the tests are in compliance with ROHS standards;

3. The insertion loss is small, the return loss is large, the interchangeability is good, the repeated plugging performance is excellent, and it is easy to use;

4. A full set of customized services can be provided according to customer requirements.

5. Adaptable working temperature (-40~+75), storage temperature (-40℃~+85℃)

6. Comply with ANSI/TIA/EIA and ISO/IEC requirements for durability, moisture resistance, coupling stress, fiber tensile force, and adaptability to harsh environments such as humidity, extreme temperature, insertion force, cable tensile stress, impact and vibration

                         Type

    Performance

Single mode

Multi mode



UPC

APC

UPC

Insertion Loss

Max

≤ 0.3dB

≤ 0.3dB

≤ 0.3dB



Typical

0.2dB

0.2dB

0.2dB

Return Loss

≥ 50dB

≥ 55dB

≥ 35dB

Testing Wavelength

1310nm & 1550nm

850nm & 1300nm

Technical performance（500 times）

IL < 0.1dB
