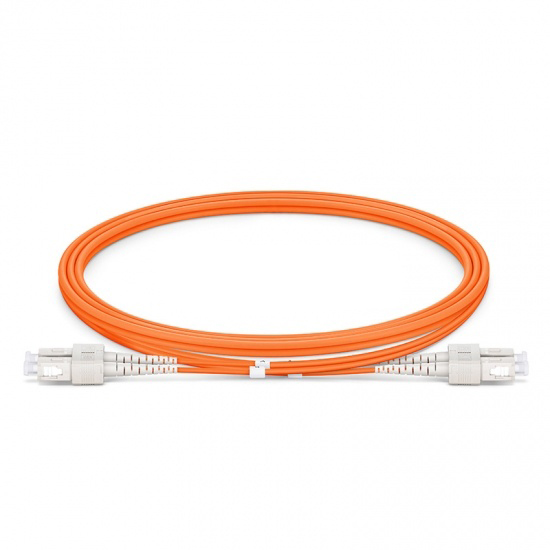

1. The product adopts imported pottery pins and imported high-quality optical fiber cables;
2. Introduce foreign advanced polishing technology and polishing equipment to effectively ensure that the center of the optical fiber is polished and flattened, the dent of the optical fiber, the surface of the optical fiber is free of scratches and defects, and the size and grade parameters of the ceramic end surface curvature radius meet the standard requirements;
3. The insertion loss is small, the return loss is large, the interchangeability is good, the repeated plugging performance is excellent, and it is easy to use;
4. A full set of customized services can be provided according to customer requirements.
5. All components have been optically tested, and the tests are in compliance with ROHS standards;
6. Comply with ANSI/TIA/EIA and ISO/IEC for durability, moisture resistance, coupling stress, fiber tensile force, and adaptability to harsh environments such as humidity, extreme temperature, insertion force and cable tensile stress, impact and vibration Require;
7. Adaptable working temperature (-40°C~+75), storage temperature (-40°~+85°C)
|
Type Performance |
Single mode |
Multi mode |
||
|
|
UPC |
APC |
UPC |
|
|
Insertion Loss |
Max |
≤ 0.3dB |
≤ 0.3dB |
≤ 0.3dB |
|
|
Typical |
0.2dB |
0.2dB |
0.2dB |
|
Return Loss |
≥ 50dB |
≥ 55dB |
≥ 35dB |
|
|
Testing Wavelength |
1310nm & 1550nm |
850nm & 1300nm |
||
|
Technical performance（500 times） |
IL < 0.1dB |
|||
