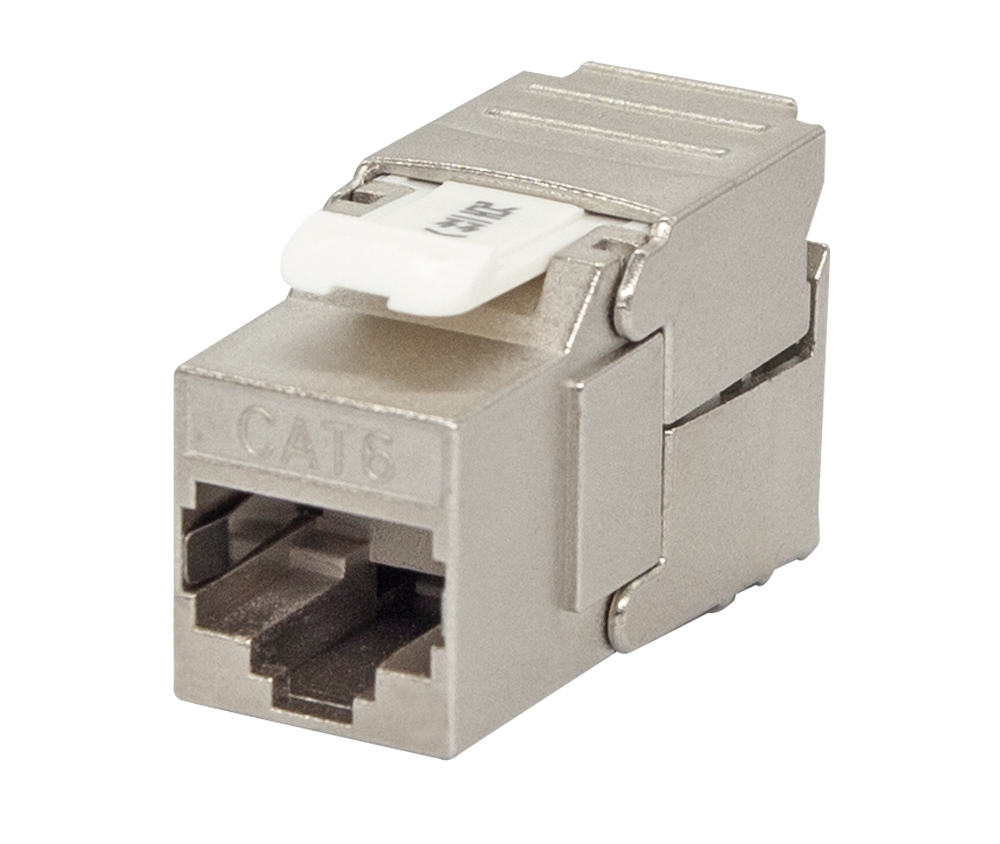

CAT6 FTP Keystone Jack
PCB adopts optimized compensation design scheme, higher margin index, tool-free termination, convenient and fast. The shell is 360° fully shielded to ensure the shielding performance of the product. The use of environmentally friendly materials meets the requirements of UL, REACH and RoHS
Product Features
Product Specifications
Download

Guideline
YD/T 926.3, IEC 60603-7, ANSI/TIA-568.2-D, ISO/IEC 11801-1

Material
PIN needle: phosphor bronze, 50μ ‘’gold plated
IDC reed: phosphor bronze, 200 μ‘’ tin plated
Plastic parts: ABS+PC, in line with UL 94V-0
Shell: zinc alloy, nickel plated

Physical parameter
Mating life: ≥ 1000 times
Wiring life: ≥ 250 times
Working temperature: -10 ℃～60 ℃
Storage temperature: -40 ℃～ 60 ℃
Relative humidity: 10% ～ 90%

Electrical parameters
Insulation resistance: ≥ 500 MΩ
Withstand voltage: 1000 V
DC current: 1.5 Amps
DC resistance: ≤ 100 mΩ
Contact resistance: ≤ 20 mΩ

Product category: Cat5e/Cat6/Cat6A/Cat8
Color: custom UTP/FTP

Connector: RJ45
Application: shielded/unshielded twisted pair

Termination type: No tools required.
Wiring scheme: T568A/T568B

Building materials: ABS/metal
Available wire gauge: 22-26AWG cable

Working temperature: -10°C to 60°C
Storage temperature: -40°C to 70°C
