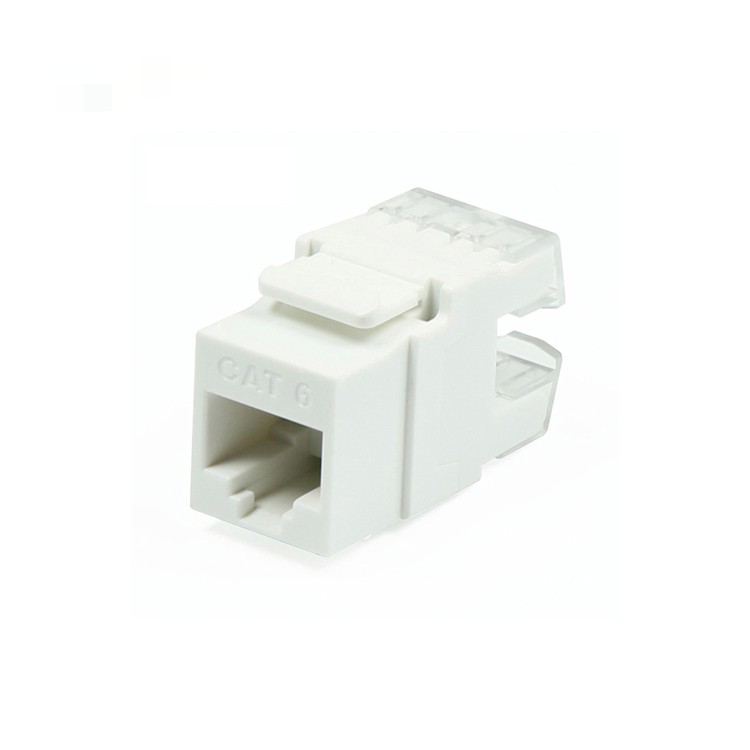

CAT6 UTP Keystone Jack
Support short link, support 6 connections PCB, adopts optimized compensation design scheme, higher margin index, adopts environmentally friendly materials, and meets UL, REACH and RoHS requirements
Product Features
Product Specifications
Download

Guideline
YD/T 926.3, IEC 60603-7, ANSI/TIA-568.2-D, ISO/IEC 11801

Material
PIN needle: phosphor bronze, 50 μ’’ gold-plated
IDC reed: phosphor bronze, 200 μ‘’ tin plated
Plastic parts: ABS+PC, in line with UL 94V-0

Physical parameter
Mating life: ≥ 1000 times
Wiring life: ≥ 250 times
Working temperature: -10 ℃～60 ℃
Storage temperature: -40 ℃～68 ℃
Relatie humidity: 10% ～ 90%


Electrical parameters
Insulation resistance: ≥ 500 MΩ
Withstand voltage: 1000 V
DC current: 1.5 Amps
DC resistance: ≤ 100 mΩ
Contact resistance: ≤ 20 mΩ

Product category: Cat5e/Cat6/Cat6A/Cat8
Color: custom UTP/FTP

Connector: RJ45
Application: shielded/unshielded twisted pair

Termination type: No tools required.
Wiring scheme: T568A/T568B

Building materials: ABS/metal
Available wire gauge: 22-26AWG cable

Working temperature: -10°C to 60°C
Storage temperature: -40°C to 70°C
