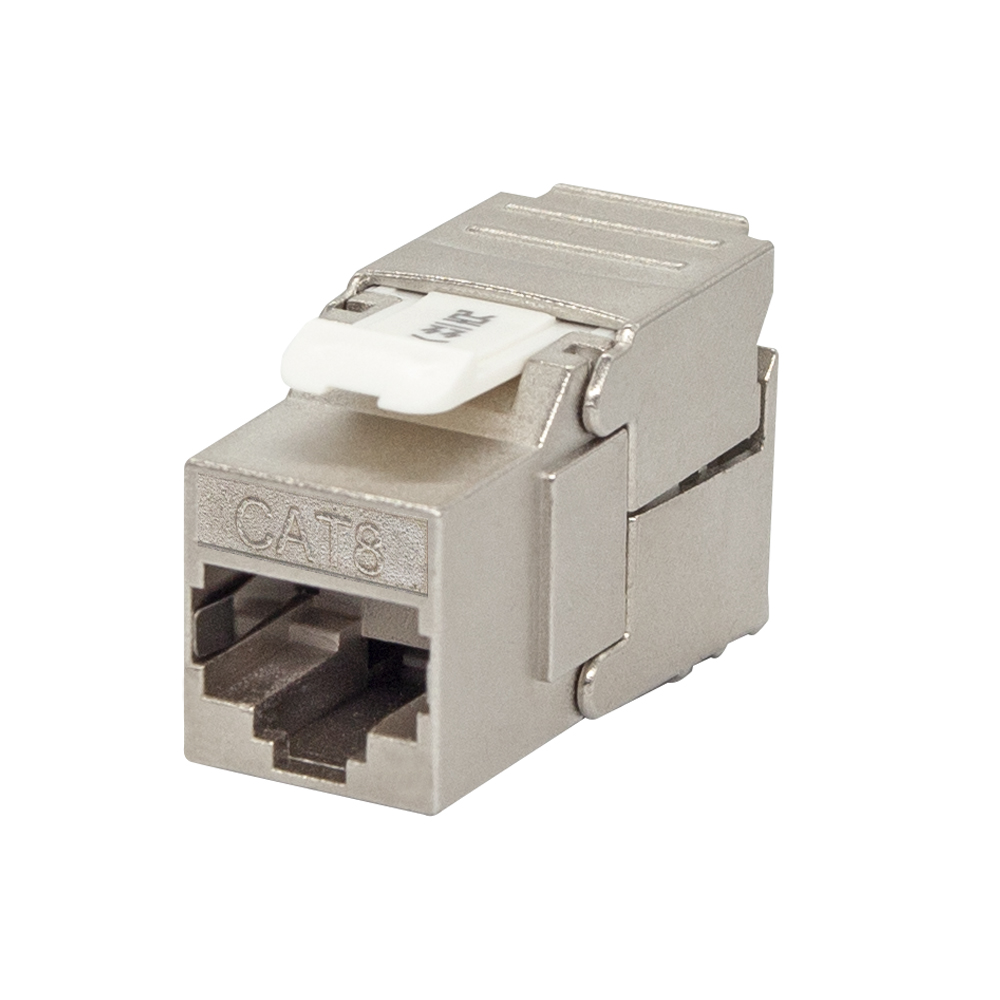

CAT8 Keystone Jack
PCB adopts optimized compensation design scheme, higher margin index, tool-free termination, convenient and fast. The shell is 360° fully shielded to ensure the shielding performance of the product. The use of environmentally friendly materials meets the requirements of UL, REACH and RoHS
Product Features
Product Specifications
Download
Guideline
YD/T 926.3, IEC 60603-7, ANSI/TIA-568.2-D, ISO/IEC 11801-1

Material
PIN needle: phosphor bronze, 50 μ’’ gold-plated
IDC reed: phosphor bronze, 200 μ‘’ tin plated
Plastic parts: ABS+PC, in line with UL 94V-0

Physical parameter
Mating life: ≥ 1000 times
Wiring life: ≥ 250 times
Working temperature: -10 ℃～60 ℃
Storage temperature: -40 ℃～ 60 ℃
Relative humidity: 10% ～ 90%

Electrical parameters
Insulation resistance: ≥ 500 MΩ
Withstand voltage: 1000 V
DC current: 1.5 Amps
DC resistance: ≤ 100 mΩ
Contact resistance: ≤ 20 mΩ
Number of pins: 8

Connection method: T568A/T568B

Terminal type: 90°/180° no-printing type

Wire diameter range: 23AWG 24AWG 26AWG

Shell material: zinc alloy

Mating times: Passed 750 times of mating test

Working mode: panel installation blank patch panel

Working temperature: -10°C-60°C (-14°F-140°F)
