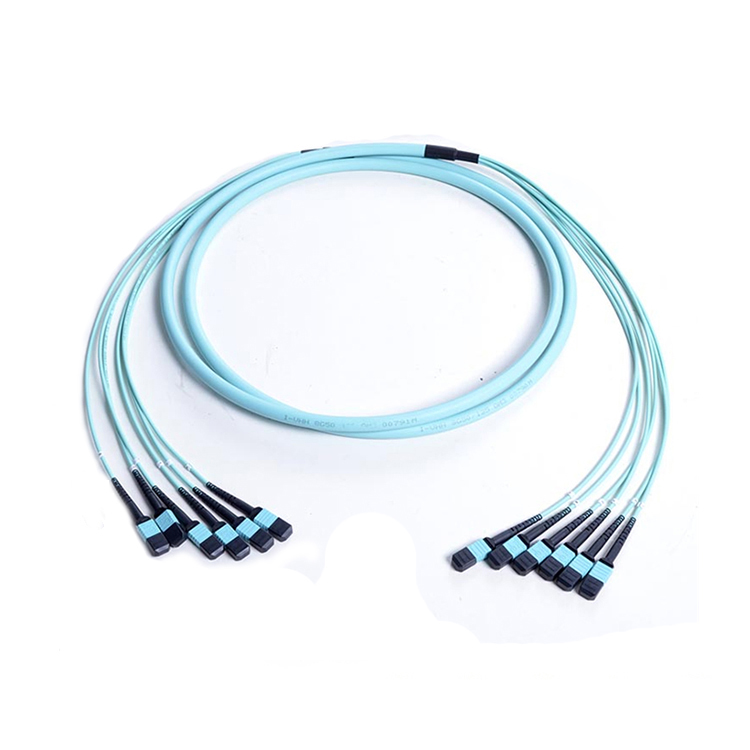

MTP-MTP OM3 Multi Mode
Linoya develops and manufactures MPO/MTPR fiber optic patch cords using fiber optic channels for termination to meet 100G/400G Ethernet and support high-bandwidth applications.
Product Features
Product Specifications
Download
1. It is used to distribute part or all of the optical fiber in the trunk cable to other areas. You can choose male or female plugs at both ends
2. Use 12-fiber MTP connector for termination
3. Round micro-core or Kai-installed cable to meet different installation needs
4. There are 12/24/36/48/72/96 and 144 kinds of fibers
5. Pull eye design, suitable for different installation environments
6. According to TIA/EIA and IEC standards, high-precision factory pre-termination and testing
Perofrmance Type

Single Mode


Multi Mode



APC standard loss

APC low loss

PC standard loss

PC low loss

Insertion Loss

Max


≤0.7dB

≤0.35dB

≤0.5dB

≤0.35dB


Typical

0.4dB

0.2dB

0.35dB

0.2dB

Return Loss

≥60dB

≥35dB

Testing Wavelength

1310nm&1550nm

850nm&1300nm
