Home > Product

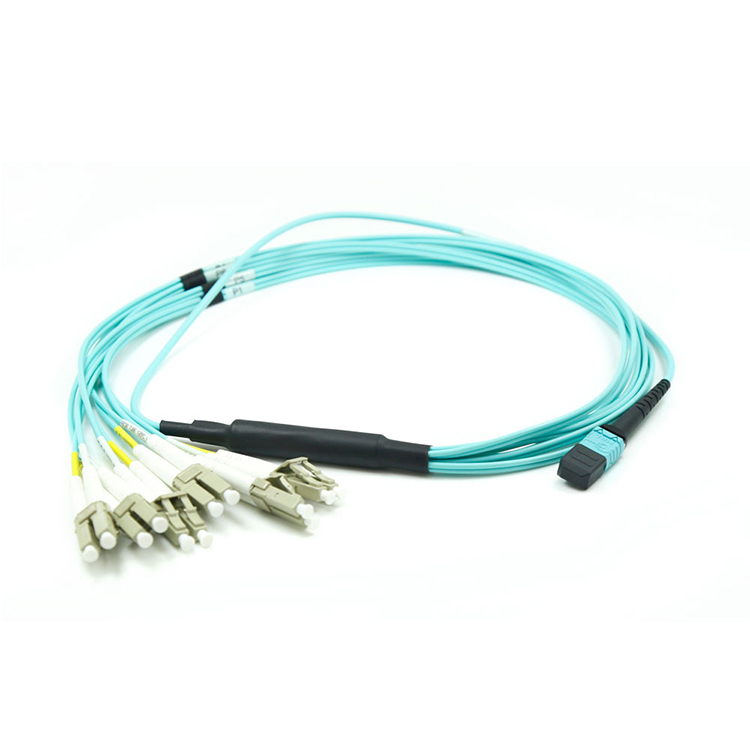

MPO Splitted Fiber Patch Cord
Linoya develops and manufactures MPO/MTPR fiber optic patch cords using fiber optic channels for termination to meet 100G/400G Ethernet and support high-bandwidth applications.
Product Features
Product Specifications
Download
1. MPO/MTP-LC series trunk cables have many cores, small size, compact connector design, simple plug-in and easy installation and disassembly.
2. Imported grinding equipment and grinding materials are used, and advanced production technology ensures more stable transmission;
3. All components have been optically tested, and the tests are in compliance with ROHS standards;
4. Comply with ANSI/TIA/EIA; ISO/IEC, GR and other international standards, for durability, moisture resistance, coupling stress, fiber tensile force and resistance to humidity and extreme temperature requirements for adaptability to harsh environments such as temperature, insertion and removal force, cable tensile stress, impact and vibration:
5. Simple push-pull locking structure, convenient and intuitive insertion and removal, suitable for different installation environments:
6. Adapted working temperature (-40℃~+75) storage temperature (-40℃~+85℃)

Performance Type

Single Mode


Multi Mode



APC standard loss

APC low loss

PC standard loss

PC low loss

Insertion Loss

Max


≤0.7dB

≤0.35dB

≤0.5dB

≤0.35dB


Typical


0.4dB

0.2dB

0.35dB

0.2dB

Return Loss


≥60dB

≥35dB

Testing Wavelength


1310nm&1550nm

850nm&1300nm
