1. Compact design, can be installed in the closet area or horizontally extended diaphragm
2. Choice of both ends with male or female connectors
3. The MTP connector should be terminated on the ribbon sheath

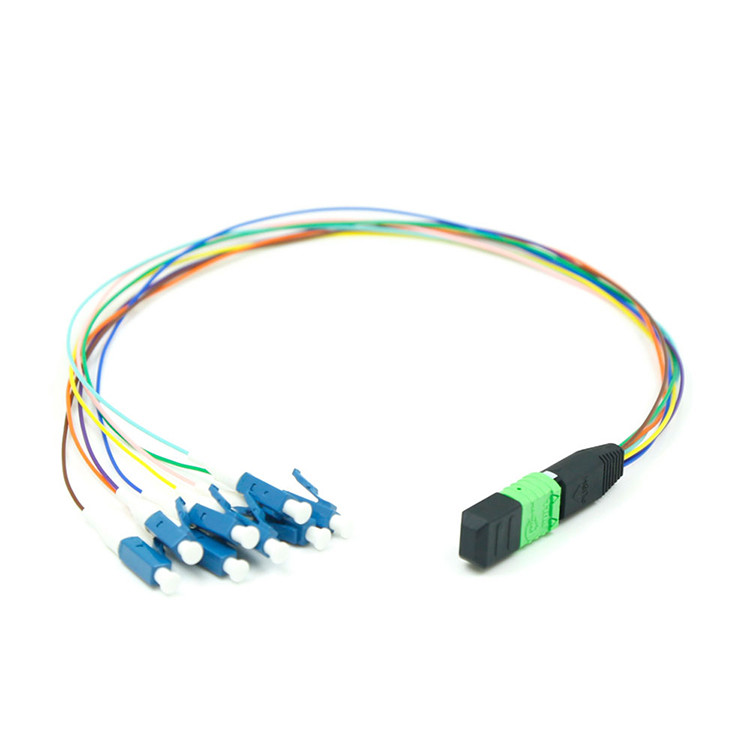

4. Transition from fan-out unit with 900um bifurcation to SM connector with sheathed ribbon cable can save space
5. High-precision factory pre-termination and factory-tested components
6. According to TIA/E|A and IEC standards
|
Performance Type |
Single mode |
Multi mode |
|||
|
|
APC standard loss |
APC low loss |
PC standard loss |
PC low loss |
|
|
Insertion Loss |
Max |
≤0.7dB |
≤0.35dB |
≤0.5dB |
≤0.35dB |
|
|
Typical |
0.4dB |
0.2dB |
0.35dB |
0.2dB |
|
Return Loss |
≥60dB |
≥35dB |
|||
|
Testing Wavelength |
1310nm&1550nm |
850nm&1300nm |
|||
