Home > Product

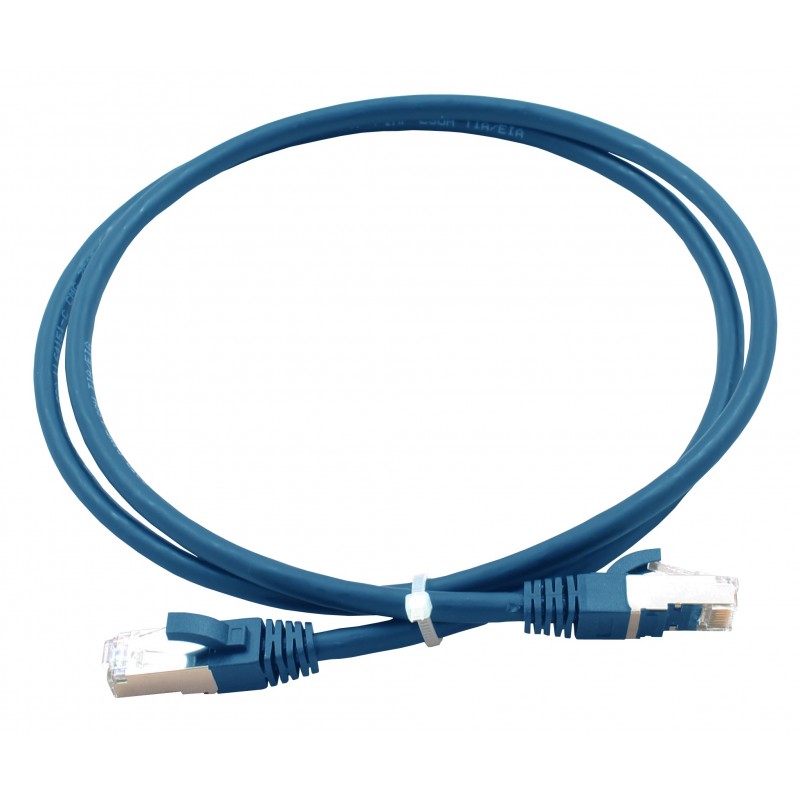

CAT6A FTP
High-quality PC crystal head, excellent mechanical performance, one-piece injection molding, reliable grounding, 100% testing, quality assurance, environmentally friendly material, REACH and RoHS passed.
Product Features
Product Specifications
Download

Guideline
YD/T 926.3, IEC 60603-7, ANSI/TIA-568.2-D, ISO/IEC 11801-1

Material
Crystal head: PC
PIN needle: phosphor bronze, 50 μ’’ gold-plated
Sheath material: PVC, LSZH

Physical parameter
Mating life: ≥ 1000 times
Working temperature: -20 ℃～60 ℃ (PVC)
                  -30 ℃～ 60 ℃ (LSZH)
Storage temperature: -40 ℃～ 60 ℃
Relative humidity: 10% ～ 90%

Electrical parameters
Insulation resistance: ≥ 500 MΩ
Withstand voltage: 1000 V
DC current: 1.5 Amps
DC resistance: ≤ 100 mΩ
Contact resistance: ≤ 20 mΩ

Connector type: RJ45
Conductor: Oxygen-free copper
Electrical characteristics: 1. Maximum conductor resistance @20°C, 66Ω/KM
                2. Maximum unbalanced resistance @20°C: 2.5%
                3. Mutual capacitance: 5.6nF/100m
                4. Characteristic impedance: 100±15Ω (1 to 100MHZ)
                5. Band width: 500MHZ
Outer skin material: PVC/LSZH
Operating temperature: -20°C to 60°C (-4~140°F)
Safety standards: RoHs, ISO/IEC11801 requirements for 7/8 network cables
Outer diameter of copper cable: 6.5±0.3mm
PoE power supply: meet 802.3af (PoE) 802.3at (PoE Plus) standard requirements
