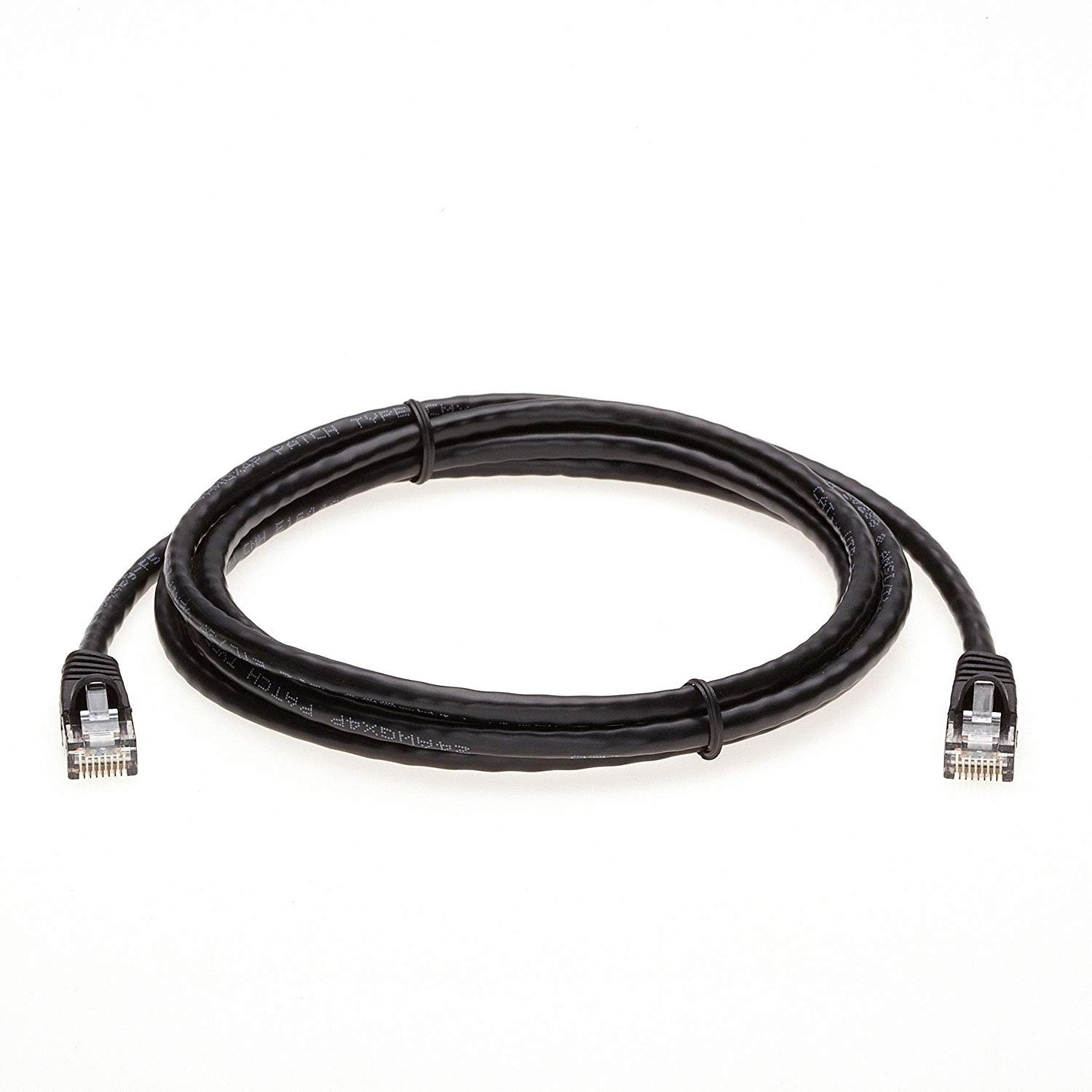

CAT5E FTP
High-quality PC connector, excellent mechanical performance, one-piece injection molding, reliable grounding 100% test, quality assurance, environmentally friendly material, REACH and RoHS passed
Product Features
Product Specifications
Download

Guideline
YD/T 926.3, IEC 60603-7, ANSI/TIA-568.2-D, ISO/IEC 11801
Material
Crystal head: PC
PIN needle: phosphor bronze, 50 μ’’ gold-plated
Sheath: PVC

Physical parameter
Mating life: ≥ 1000 times
Working temperature: -20 ℃～60 ℃
Storage temperature: -40 ℃～68 ℃
Relative humidity: 10% ～ 90%
Electrical parameters
Insulation resistance: ≥ 500 MΩ
Withstand voltage: 1000 V
DC current: 1.5 Amps
DC resistance: ≤ 100 mΩ
Contact resistance: ≤ 20 mΩ


Connector type: RJ45

Conductor: Oxygen-free copper

Electrical characteristics:
1. Maximum conductor resistance @20°C, 66Ω/KM
2. Maximum unbalanced resistance @20°C: 2.5%
3. Mutual capacitance: 5.6nF/100m
4. Characteristic impedance: 100±15Ω (1 to 100MHZ)
5. Band width: 100MHZ

Outer skin material: PVC/LSZH

Operating temperature: -20°C to 60°C (-4~140°F)

Safety standards: RoHs, ISO/IEC11801 requirements for 7/8 network cables

Outer diameter of copper cable: 5.0±0.3mm

PoE power supply: meet 802.3af (PoE) 802.3at (PoE Plus) standard requirements
